11kv S/C 150mm2 PVC Cable

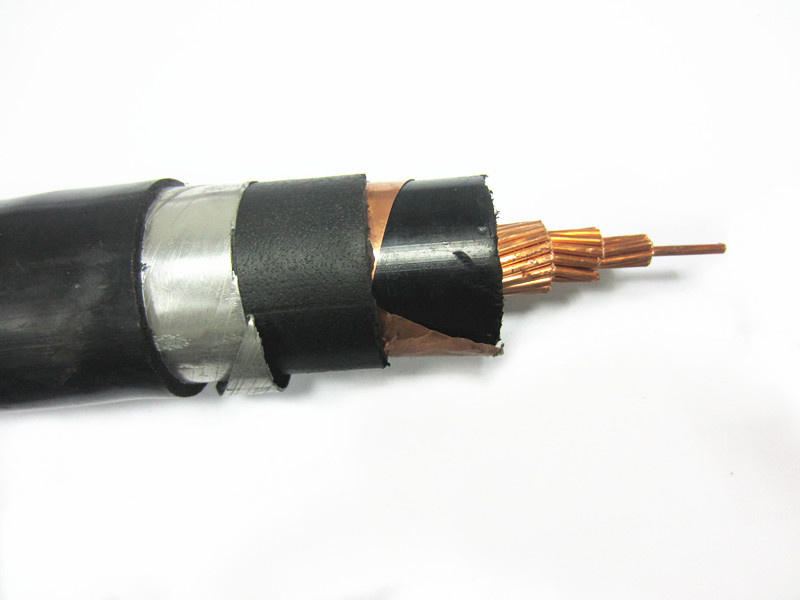

XLPE Insulated Steel Tape Armoured Power Cable

1. Performance Characteristics:

1. The long-term permissible operation temperature of conductor shall not be higher than 70.

2. Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 160.

3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be

4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Voltage rating: 0.6/1KV 3.6/6KV.

Conductors: Copper or aluminum.

Number of cable cross: One core (Single core), two cores

(Double cores), three cores, four cores (Four Equal-section-area

Cores or three equal-section-area and one smaller section area

Neutral core), five cores (Five equal-section-area cores or three

Equal-section-area cores and two small area neutral cores). We

Provide armored type and non-armored type for the cables stated

Above.

Outer sheath: PVC or PE.

Our company has been carrying out Chinese national standard GB12706 and GB12666.6 (equivalent

To IEC60502 and IEC60331) for PVC insulated power cable and fire resistant cable needed by domestic

Customer, and for foreigner customers we can manufacture in accordance with BS, DIN and other countries

Standards. In addition, we can design and manufacture PVC insulated power cable with special characteristics

According to needs of customers.

Product Details:

Insulation Material PVC

Cu or AL conductor

Steel wire/tape armored or not

PVC or PE sheath

Standards

IEC AS BS DIN JIS ASTM CSA NFC etc.

Other special characteristics: Design and manufacture according to customers’ request
