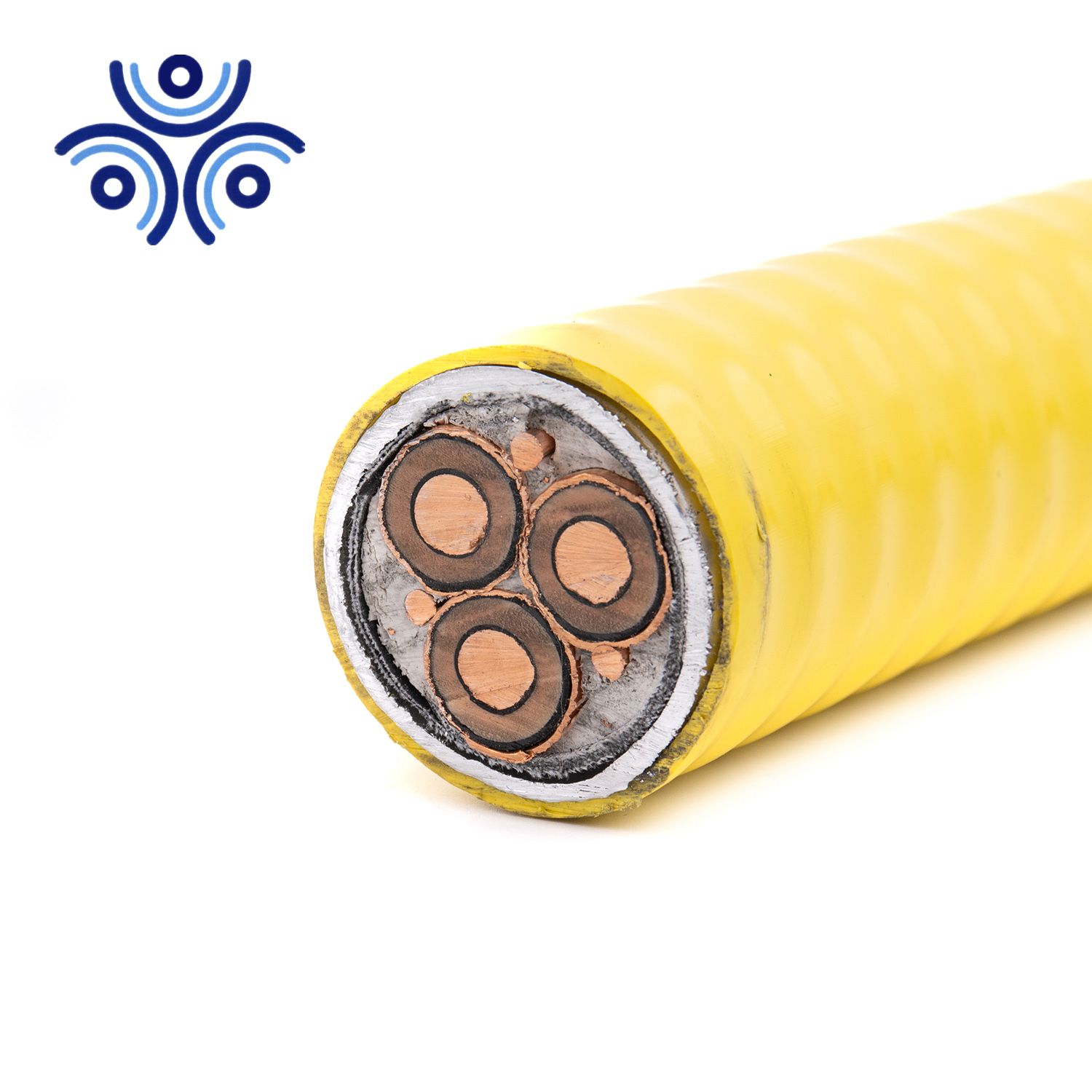

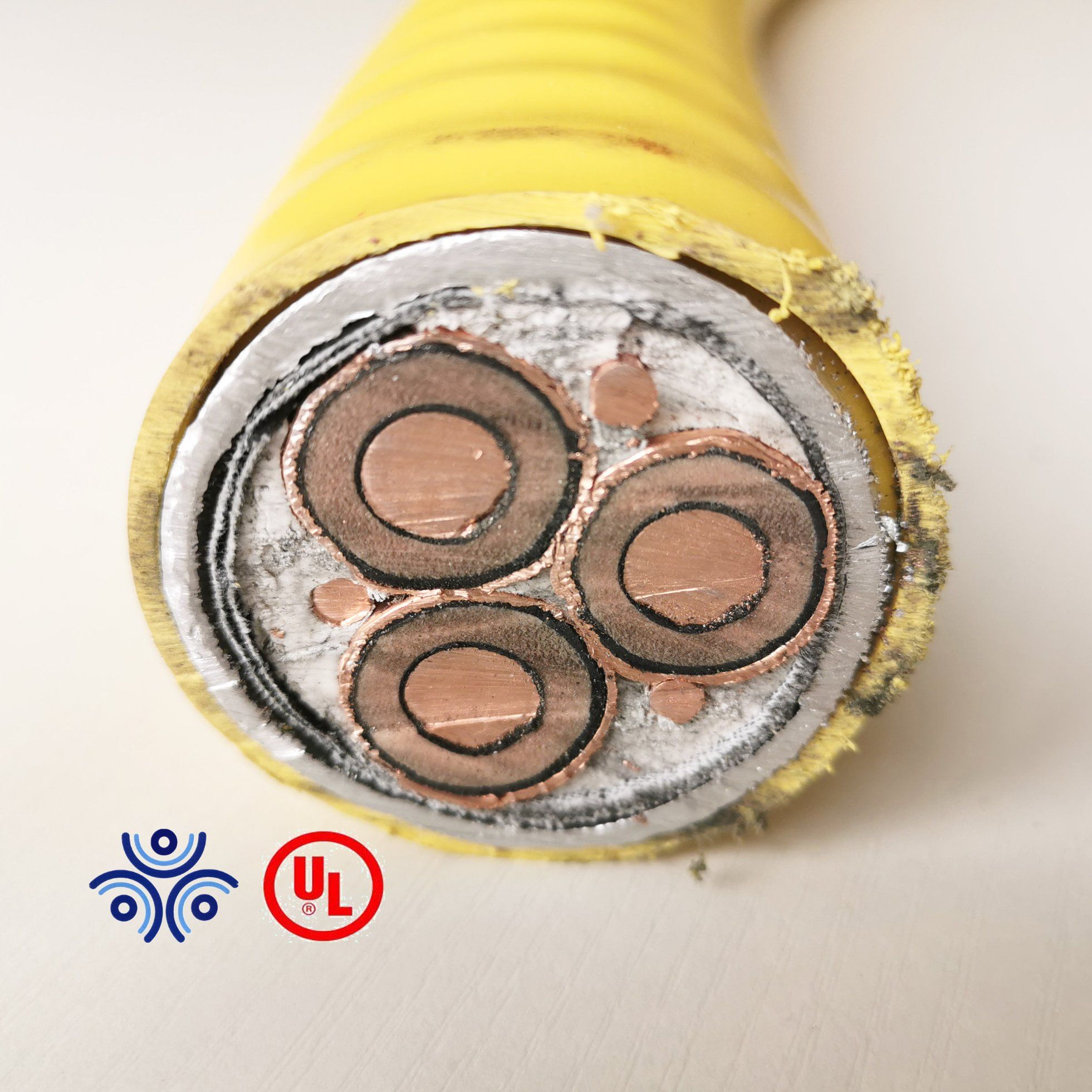

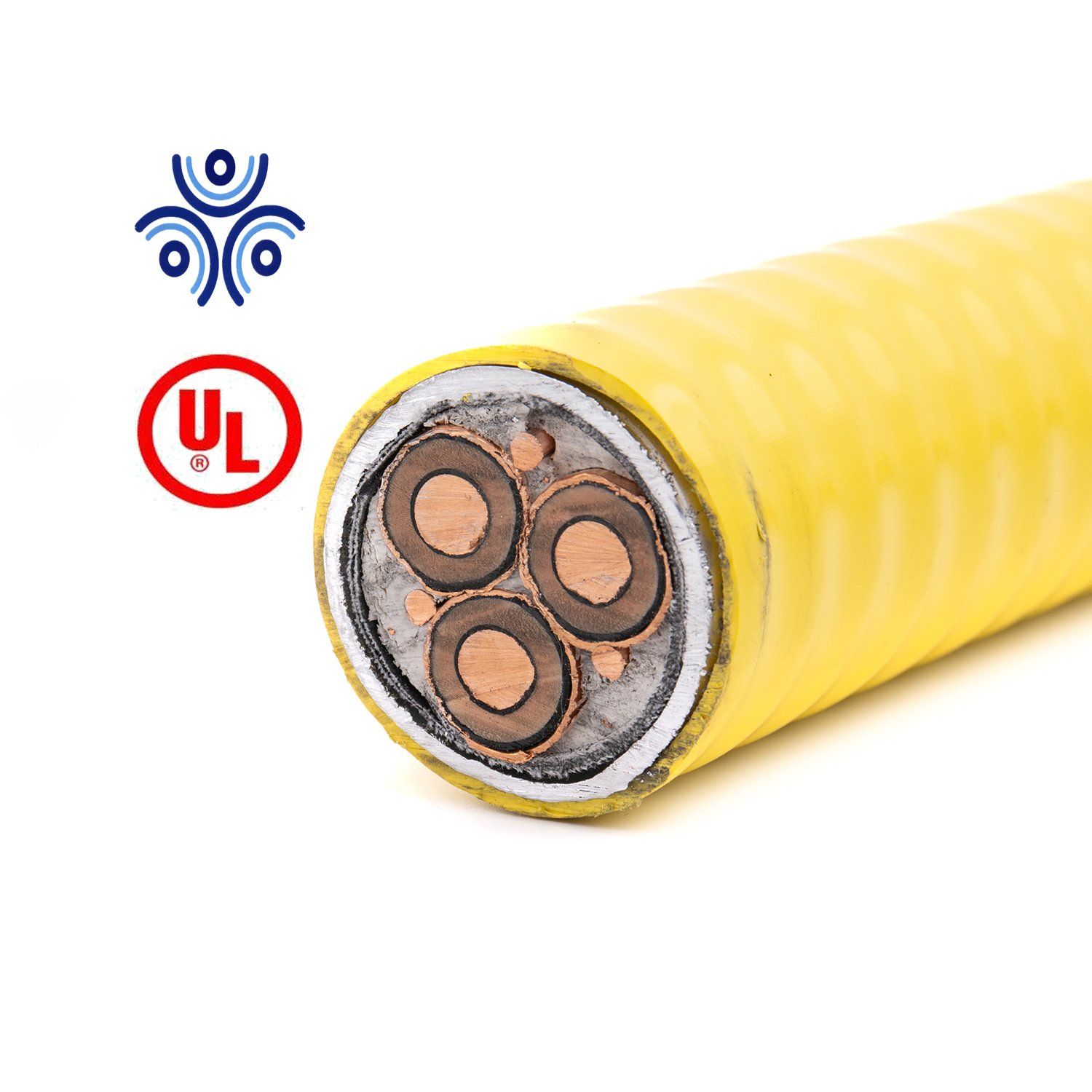

10kv 11kv 24kv 25kv 33kv 20 30 Kv 3 Core 120mm2 240mm2 300mm2 150 mm2 Aluminium High Voltage Armoured Underground Power Cable

10kv 11kv 24kv 25kv 33kv 20 30 Kv 3 Core 120mm2 240mm2 300mm2 150 mm2 Aluminium High Voltage Armoured Underground Power Cable image

Get Latest Price Request a quote

Product Details

Current

AC Cable

Insulation Material

Rubber

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO

Model

Mv90 Mv105

Brand

Ren Da

Transport Package

Standard Export Drum

Specification

8AWG TO 1000MCM

Trademark

RNE DA

Origin

Tangshan, Hebei

HS Code

8544601290

Production Capacity

300km/Month

Product Description

MV-90 cable medium voltage 250 350 450 500mcm copper cable, Huatong Group

Application:
Predominantly used for primary underground distribution in conduit systems; suitable for use in wet or dry locations, direct burial, underground duct, and where exposed to sunlight.

Specification:

Meets or exceeds the following ASTM specifications:

B3 Soft Annealed Copper Wire

B8 Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard or Soft

B230 Aluminum, 1350-H19 Wire for Electrical Purposes

B231 Aluminum 1350 Conductors, Concentric-Lay-Stranded

B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes

Constructure:

Conductor Count: 1 conductor

Conductor: compacted Aluminum or copper, class B

Strand Shield: Extruded thermoset semi-conducting polymer over the conductor

Insulation: Tree-Retardant Cross-linked Polyethylene (TR-XLPE) or EPR

Insulation Shield: Extruded thermoset semi-conducting polymer over the insulation

Metal shield: Neutral Helically applied, annealed, solid bare copper wires or copper tapes

Jacket: Linear Low-Density Polyethylene (LLDPE) or PVC

Performance:

Phase Conductor		Neutral		Thickness Per Cond. (mils)				Diameter (mils)			Weight 1000 feet (lbs.)
Size (AWG or kcmil)	Stranding	No. of Wires	Size (AWG)	Nominal Insul.	Insul. Shield min. Point	Approx. Jkt.	Bare Phase Cond.	Over Insul.	Over Insul. Shield	Comp. Cable	Comp. Cable
ALUMINUM CONDUCTOR – 0.345 INSULATION – 100% INSULATION LEVEL ” FULL COPPER WIRE NEUTRAL
1*1/0	19	16	14	345	40	55	335	1066	1176	1414	977
1*2/0	19	13	12	345	40	55	376	1107	1217	1488	1123
1*3/0	19	16	12	345	40	55	423	1153	1263	1534	1249
1*4/0	19	13	10	345	40	80	474	1212	1322	1686	1537
1*250	37	15	10	345	40	80	523	1261	1371	1735	1678
1*300	37	18	10	345	40	80	572	1310	1420	1784	1858
1*350	37	21	10	345	40	80	617	1355	1465	1829	2034
1*400	37	19	9	345	40	80	661	1399	1509	1898	2243
1*450	37	21	9	345	40	80	701	1439	1549	1938	2400
1*500	37	19	8	345	40	80	738	1476	1586	2003	2626
1*550	61	21	8	345	55	80	783	1527	1657	2074	2859
1*600	61	23	8	345	55	80	817	1561	1691	2108	3033
1*650	61	25	8	345	55	80	850	1594	1724	2141	3205
1*700	61	26	8	345	55	80	883	1627	1757	2174	3332
1*750	61	28	8	345	55	80	914	1658	1788	2205	3502
1*800	61	30	8	345	55	80	943	1687	1817	2234	3671
ALUMINUM CONDUCTOR – 0.345 INSULATION – 100% INSULATION LEVEL ” 1/3 COPPER WIRE NEUTRAL
1*1/0	19	6	14	345	40	55	335	1066	1176	1414	859
1*2/0	19	7	14	345	40	55	376	1107	1217	1455	928
1*3/0	19	9	14	345	40	55	423	1153	1263	1501	1021
1*4/0	19	11	14	345	40	55	474	1212	1322	1561	1136
1*250	37	13	14	345	40	55	523	1261	1371	1609	1237
1*300	37	15	14	345	40	80	572	1310	1420	1708	1405
1*350	37	18	14	345	40	80	617	1355	1465	1754	1525
1*400	37	13	12	345	40	80	661	1399	1509	1831	1682
1*450	37	14	12	345	40	80	701	1439	1549	1870	1780
1*500	37	16	12	345	40	80	738	1476	1586	1907	1896
1*550	61	18	12	345	55	80	783	1527	1657	1979	2067
1*600	61	19	12	345	55	80	817	1561	1691	2013	2163
1*650	61	13	10	345	55	80	850	1594	1724	2088	2333
1*700	61	14	10	345	55	80	883	1627	1757	2121	2440
1*750	61	15	10	345	55	80	914	1658	1788	2152	2545
1*800	61	16	10	345	55	80	943	1687	1817	2181	2648
1*900	61	18	10	345	55	80	1001	1745	1875	2239	2854
1*1000	61	20	10	345	55	80	1055	1800	1930	2293	3058
1*1250	61	20	9	345	55	80	1180	1924	2054	2443	3606

‘

We are China 10kv 11kv 24kv 25kv 33kv 20 30 Kv 3 Core 120mm2 240mm2 300mm2 150 mm2 Aluminium High Voltage Armoured Underground Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Get Latest Price Request a quote

Tags: Hebei Huatong Wires & Cables Group Co., Ltd., Mc-Hl Cable, Power Cable

10kv 11kv 24kv 25kv 33kv 20 30 Kv 3 Core 120mm2 240mm2 300mm2 150 mm2 Aluminium High Voltage Armoured Underground Power Cable

You May Like

Ngflgoeu 4G120 4X120mm 4X120mm2 4X120 Flat Rubber Cable

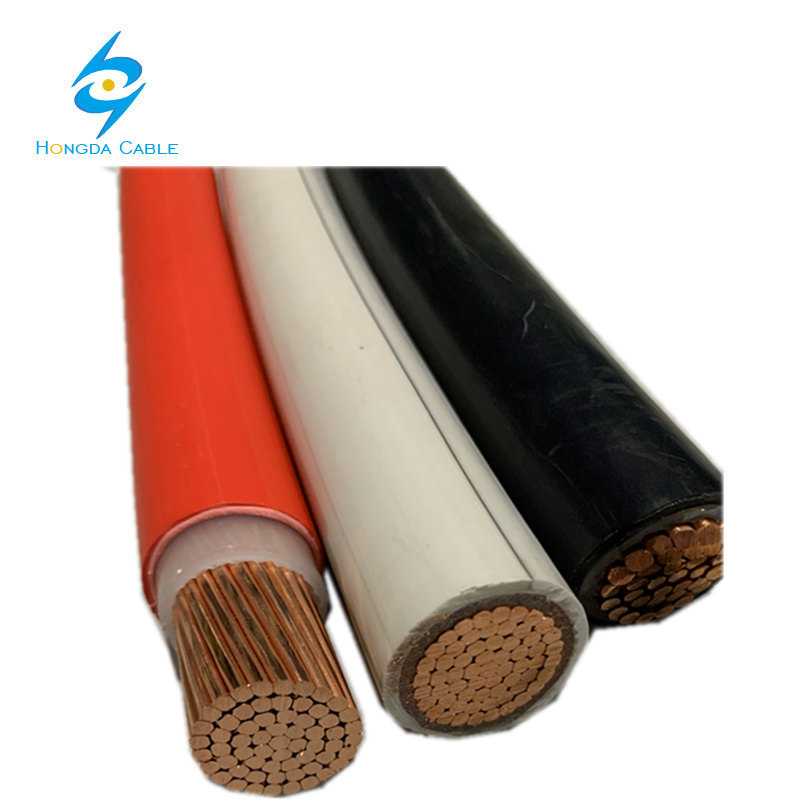

Freetox Halogen-Free Cable N2xoh 0.6/1kv 3X1X120 mm2 3X1X300 mm2 Multipolar Cable

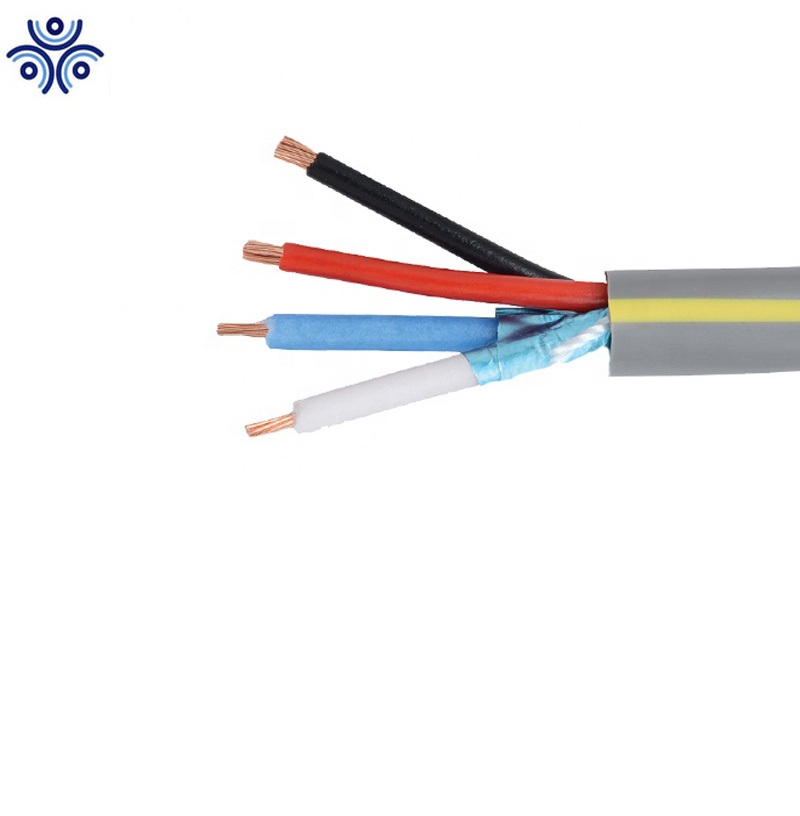

UL Certification 600V Power and Control Tray Cable Type Tc Cable
