10 12 14 16 AWG Tinned Copper Cable Switchboard Wire
10 12 14 16 AWG Tinned Copper Cable Switchboard Wire image
Get Latest Price Request a quote
You May Like
Product Details
Product Description

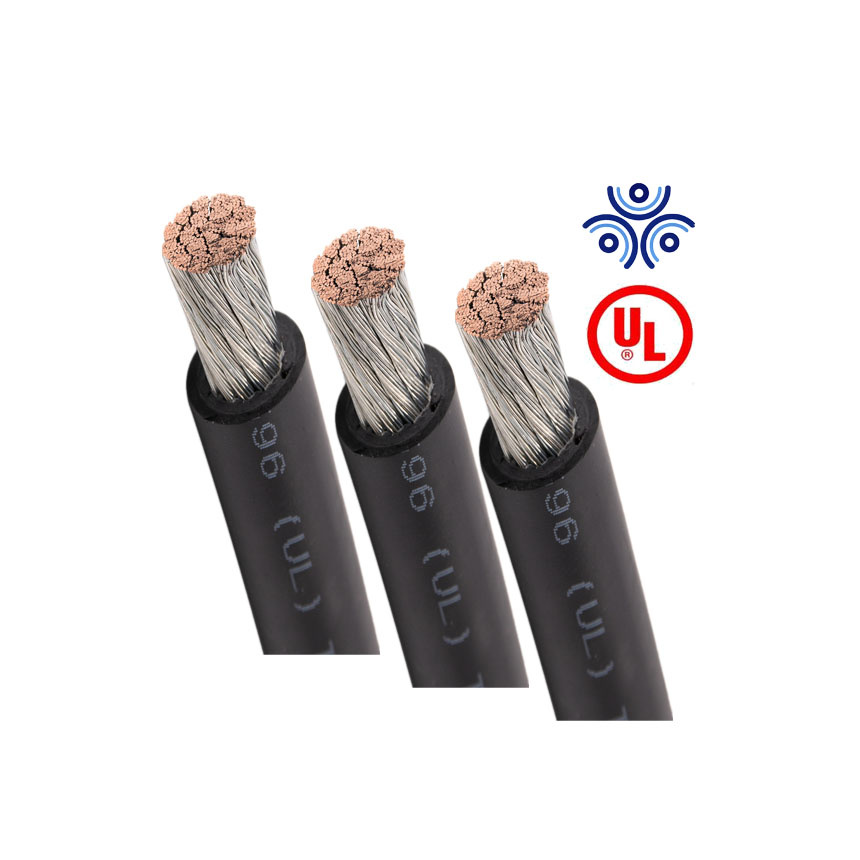

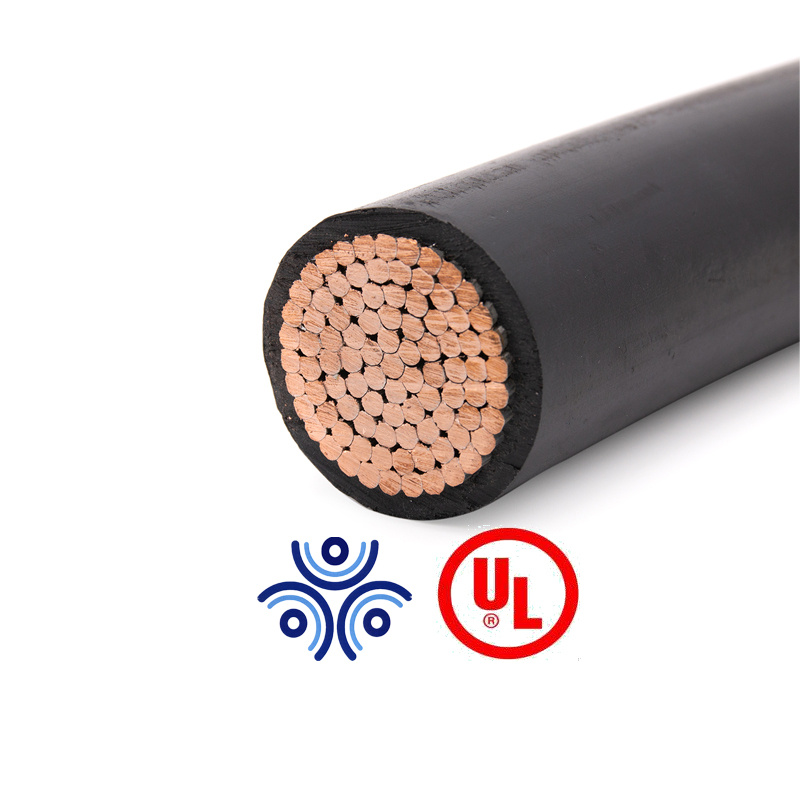

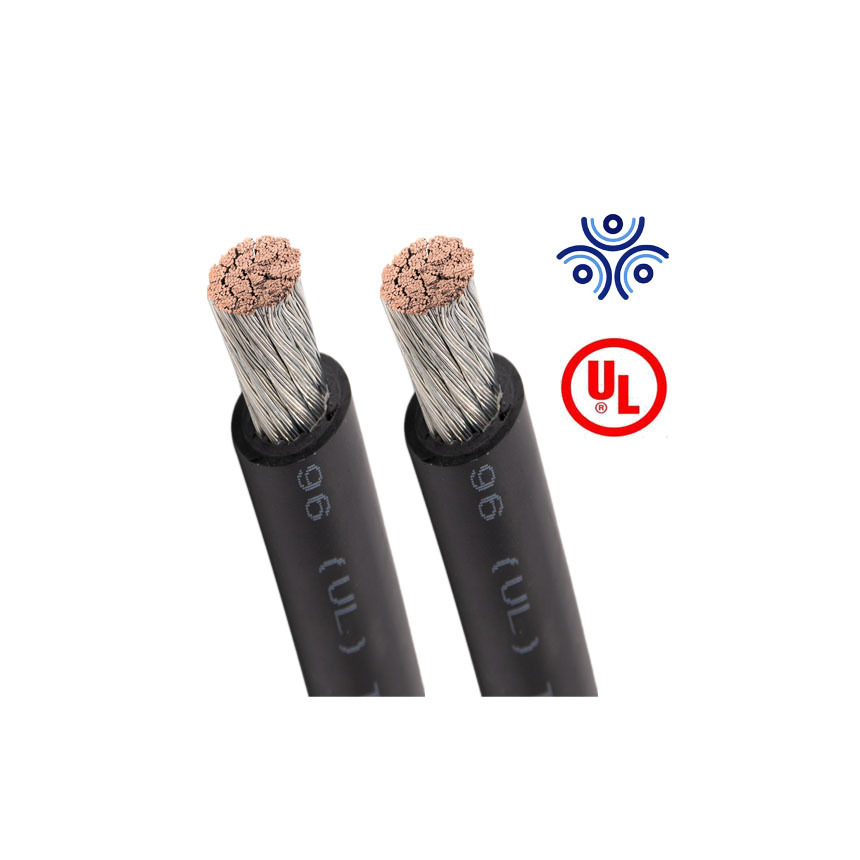

SIS wire SIS cable UL44 600v XLPE vw-1 swith board cable
Conductor: 14 AWG and larger tinned copper or bare copper
Insulation: Abrasion, moisture, heat and sunlight resistant black cross-linked polyethylene (XLPE).
Application: Stranded sizes No. 14 and larger and solid sizes No. 12 and larger are approved for use by the Power Switchgear Assemblies Group of the switchgear section of NEMA in Standard SG 5-1975 for use as control and secondary wiring in power switchgear assemblies .
Sizes No. 14 and larger are listed by Underwriters Laboratories, Inc.as Type SIS for wiring switchboards and other control panels in accordance with article 384 of the National Electrical Code. • Sizes
No. 18 and 16 AWG are not listed as Type SIS switchboard wire, but are listed by UL as 90°C, 600V appliances Wiring Material per UL Style 3320 and may be used as motor leads or for internal wiring of appliances. • SIS (VW1) exceeds flame test requirements for SIS wire. (UL standard 1581, para. 1160)
Standard: UL Standard 44 VW-1 FT1 FT2
| Size (AWG) | No. of Strands | Insulation Thickness | Overall Diameter | Allowable Ampacity + 30°C Ambient (amps) | Net Weight | |||||
| (mm) | (in) | (mm) | (in) | 60°C | 75°C | 90°C | kg/km | lbs/Mft | ||
| 14 | 1 | 0.76 | 0.030 | 3.23 | 0.127 | 20 | 20 | 20 | 27 | 18 |
| 14 | 7 | 0.76 | 0.030 | 3.45 | 0.136 | 20 | 20 | 20 | 29 | 19 |
| 14 | 41 | 0.76 | 0.030 | 3.45 | 0.136 | 20 | 20 | 20 | 29 | 19 |
| 12 | 1 | 0.76 | 0.030 | 3.63 | 0.143 | 25 | 25 | 25 | 40 | 27 |
| 12 | 7 | 0.76 | 0.030 | 4.01 | 0.158 | 25 | 25 | 25 | 42 | 28 |
| 12 | 65 | 0.76 | 0.030 | 4.01 | 0.158 | 25 | 25 | 25 | 42 | 28 |
| 10 | 1 | 0.76 | 0.030 | 4.19 | 0.165 | 40 | 40 | 40 | 59 | 40 |
| 10 | 7 | 0.76 | 0.030 | 4.57 | 0.180 | 40 | 40 | 40 | 62 | 42 |
| 10 | 104 | 0.76 | 0.030 | 4.65 | 0.183 | 40 | 40 | 40 | 63 | 42 |
| 8 | 7 | 1.14 | 0.045 | 6.15 | 0.242 | 55 | 65 | 70 | 104 | 70 |
| 8 | 19 | 1.14 | 0.045 | 6.15 | 0.242 | 55 | 65 | 70 | 104 | 70 |
| 6 | 7 | 1.14 | 0.045 | 6.81 | 0.268 | 80 | 95 | 100 | 143 | 96 |
| 4 | 7 | 1.14 | 0.045 | 8 | 0.315 | 105 | 125 | 135 | 220 | 148 |
We are China 10 12 14 16 AWG Tinned Copper Cable Switchboard Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
