1 3c 1AWG 3c Armored Aluminum PVC600V 90c Black Acwu90 Cable

1 3c 1AWG 3c Armored Aluminum PVC600V 90c Black Acwu90 Cable image

Get Latest Price Request a quote

Product Details

Model NO.

ACWU90 cable

Application

Underground

Conductor Material

Copper or Aluminum

Sheath Material

PVC

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Commercial, Industrial

Certification

ISO9001, CE, CCC, RoHS, VDE

Brand

Huatong

Voltage

Low Voltage 600V, 2000V

Armored Material

Aluminum/Steel Interlock

Certificate

CSA cUL

Package

Drums

Supply Ability

100000 Meters/Month

Transport Package

Coils and Drums

Specification

12AWG to 2000KCMIL

Trademark

HT CABLES

Origin

China

HS Code

8544492100

Production Capacity

200000m/Month

Packaging & Delivery

Package Size

111.00cm * 111.00cm * 111.00cm

Package Gross Weight

111.000kg

Product Description

PVC sheath Metal-clad ACWU90 Cable for Canada

Conductor: 8 AWG. thru 750 kcmil aluminum (8000 series aluminum) compact class “B”strand

Insulation: Cross-linked Polyethylene (XLPE) Type RW90

Colour Coding: #8 AWG thru #2 black, red, white #1 AWG thru 750 kcmil black with printed colours

Bonding Conductor (Ground): One (1) bare stranded aluminum (ACM) conductor

Armour: Aluminum Interlocked Armour (AIA)/SWA

Jacket: Low acid gas, flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC),black. Custom colours available upon request

Applications: For exposed and concealed wiring in dry, damp or wet locations,cable trays,direct earth burial,For service entrance

Installations Features: Rated at 90°C wet or dry, -40°C, crush, oil and chemical resistance

Maximum Voltage Rating: 600V,1000V and 2000V

NO OF COND.

COND.SIZE

Grounding wire size

Insulation

Thickness

Nominal Diameter( over) mm

Net weight

AWG

(mm)

Twisted Core

Armor

Cable

KG/KM

0.68

14.3

19.1

21.6

937.7

#6 AWG THRU 750 kcmil XLPE/ALUMINUM ARMOURED/PVC/600 V, (-40°C)

Construction:

Conductor: 8 AWG. Thru 1000 kcmil aluminum (8000 series aluminum) compact class “B” strand

Insulation: Cross-linked Polyethylene (XLPE)

Type RW 90 Colour Coding: Black Bonding Conductor (Ground): Concentrically wrapped bare stranded bare copper conductor

Armour: Aluminum Interlocked Armour (AIA)/SWA

Jacket: Low acid gas, flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC), black. Custom colours available upon request

Applications:

For wet and dry locations.

To be used for exposed and concealed wiring or where subject to the weather.

For direct earth burial and service entrance above or below ground.

Used in ventilated, non-ventilated and ladder-type cable trays.

Approved for all hazardous locations as per CEC Part 2018 Section 18, when installed with approved connectors.

Techinical data sheet

NO OF COND.

COND.SIZE

Grounding wire size

Insulation

Thickness

Nominal Diameter( over) mm

Net weight

AWG

(mm)

Twisted Core

Armor

Cable

KG/KM

0.68

14.3

19.1

21.6

937.7

We are China 1 3c 1AWG 3c Armored Aluminum PVC600V 90c Black Acwu90 Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Get Latest Price Request a quote

Tags: Electric Cable, Hebei Huatong Wires & Cables Group Co., Ltd., Mc AC Bx Cable

1 3c 1AWG 3c Armored Aluminum PVC600V 90c Black Acwu90 Cable

You May Like

Factory Outlet Medium Voltage 3 Core Copper 33kv XLPE Cable

BS215 Standard Camel 450mm2 ACSR Conductor

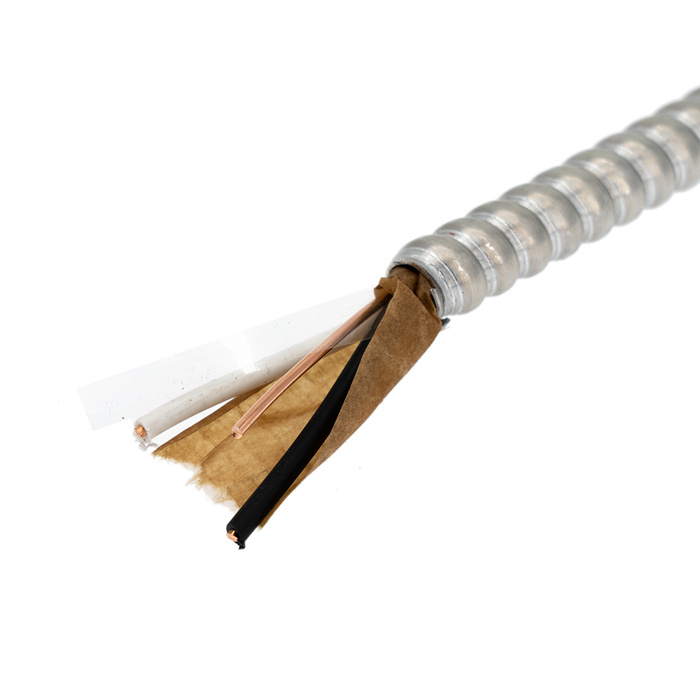

14AWG-500kcmil 12/2 Building Wire House Acwu90 cUL with RoHS in China AC90

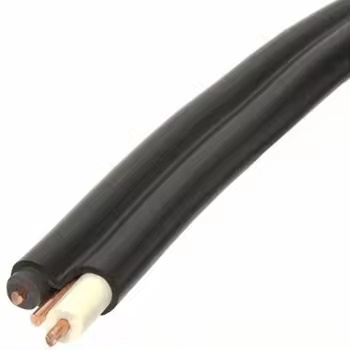

14/2 12/2 8/3 8/2AWG Flat XLPE Insulation Type Nmwu Cable

H03VV-F H05VV-F H07VV-F Power Cable Control Cable

Choseal 0.5-100m HD-SDI Date Security Cable BNC Video Cable for CCTV Camera 3G-SDI SDI Cable

Aluminum Interlocked Armor, 600V, 12-3c W/ Ground Teck90 Cable

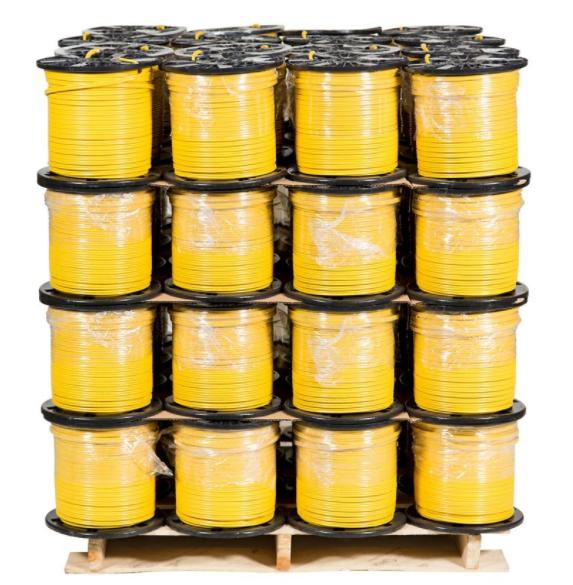

600volts 14/2 12/3 12/2 Gauge with Ground Copper Wire Nm-B Cable
