Product Details
Product Description
1 1.5 2.5 4 6 10mm wire multicore soft electric wire 450/750v electrical wire cable for instrument
Application : Instrumentation cables are designed to carry communication and control signals in a variety of installation
types including those found in the petrochemical industry
Pairs : 1-61 pairs
Standard : IEC 60228 or BS 6360
Conductor : Stranded copper conductor
Insulation : PE/XLPE/PVC
Armoring: SWA/STA/Galvanized steel wire or others
Sheath: PVC(polyvinyl chioride)
in electrical contact with a tinned annealed copper drain wire 0.5mm2
Individual screening: each pairs screened with aluminum/mytar tape, helically applied with the metallic side down in
electrical contact with a tinned annealed copper drain wire 0.5mm2
Cabling: twisted pairs are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation.
Product Parameters:
|
No. of Pairs
|
Stranding
Dia |
Mom.
Insulation thickness |
Nom.
bedding thickness |
Approx.
dia.over bedding |
Nom.
Dia.of armour wire |
Nom.
Outer sheath thickness |
Approx.
Overall Dia |
Weight
Approx |
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
0.5mm²(solid)
|
||||||||
|
2
|
1/0.8
|
0.5
|
0.9
|
9.7
|
0.9
|
1.4
|
14.3
|
345
|
|
5
|
1/0.8
|
0.5
|
12
|
13.0
|
1.25
|
1.5
|
185
|
610
|
|
10
|
1/0.8
|
0.5
|
1.2
|
16.9
|
1.25
|
17
|
22.8
|
870
|
|
15
|
1/0.8
|
0.5
|
1.3
|
19.7
|
1.5
|
1.7
|
26.3
|
1265
|
|
20
|
1/0.8
|
0.5
|
1.3
|
22.3
|
1.6
|
1.8
|
29.1
|
1475
|
|
30
|
1/0.8
|
0.5
|
1.5
|
27.1
|
1.6
|
1.9
|
34.1
|
1915
|
|
50
|
1/0.8
|
0.5
|
2.0
|
35.0
|
2.0
|
2.2
|
43.4
|
3075
|
|
1.0 mm²(solid)
|
||||||||
|
2
|
1/1.13
|
0.6
|
1.1
|
11.9
|
0.9
|
1.5
|
16.7
|
435
|
|
5
|
1/1.13
|
0.6
|
1.2
|
15.4
|
1.25
|
1.6
|
21.1
|
755
|
|
10
|
1/1.13
|
0.6
|
1.3
|
20.5
|
1.6
|
1.8
|
27.3
|
1300
|
|
15
|
11.13
|
0.8
|
1.5
|
24.1
|
1.6
|
1.9
|
31.
|
1665
|
|
20
|
1/1.13
|
0.6
|
1.7
|
27.7
|
2.0
|
2.0
|
35.7
|
2240
|
|
30
|
1/1.13
|
0.6
|
2.0
|
33.7
|
2.0
|
2.2
|
42.1
|
2950
|
|
50
|
1/1.13
|
0.6
|
2.2
|
42.5
|
2.5
|
2.5
|
52.5
|
4639
|
|
0.5 mm²(flexible)
|
||||||||
|
2
|
16/0.2
|
0.6
|
1
|
11.2
|
0.9
|
1.5
|
16.0
|
400
|
|
5
|
16/0.2
|
0.6
|
1.2
|
14.5
|
1.25
|
1.6
|
20.2
|
680
|
|
10
|
16/0.2
|
0.6
|
1.3
|
19.3
|
1.6
|
1.8
|
26.1
|
1175
|
|
15
|
16/0.2
|
0.6
|
1.5
|
22.5
|
1.6
|
1.8
|
29.4
|
1420
|
|
20
|
16/0.2
|
0.6
|
1.5
|
25.7
|
1.6
|
19
|
327
|
1680
|
|
30
|
16/0.2
|
0.6
|
1.7
|
31.0
|
2.0
|
2.1
|
39.2
|
2415
|
|
50
|
16/0.2
|
0.6
|
2.2
|
39.9
|
2.5
|
2.4
|
48.7
|
3940
|
|
0.75mm²(flexible)
|
||||||||
|
2
|
24/0.2
|
0.6
|
1.1
|
12.1
|
0.9
|
1.5
|
16.9
|
437
|
|
5
|
24/0.2
|
0.6
|
12
|
15.r
|
1.25
|
1.6
|
21.4
|
755
|
|
10
|
24/0.2
|
0.6
|
1.3
|
20.9
|
1.6
|
17
|
27.5
|
1291
|
|
15
|
24/0.2
|
0.6
|
1.5
|
24.6
|
1.6
|
1.9
|
31.6
|
1680
|
|
20
|
24/0.2
|
0.6
|
1.5
|
27.9
|
1.6
|
19
|
34.9
|
2202
|
|
30
|
24/0.2
|
0.6
|
2.0
|
34.4
|
2.0
|
2.2
|
42.8
|
2880
|
|
50
|
24/0.2
|
0.6
|
2.2
|
43.5
|
2.5
|
2.5
|
53.5
|
4406
|
|
1.5mm²(stranded)
|
||||||||
|
2
|
7/0.52
|
0.6
|
1.2
|
13.6
|
1.25
|
1.6
|
19.3
|
635
|
|
5
|
7/0.52
|
0.6
|
1.3
|
17.7
|
1.6
|
1.7
|
24.3
|
1070
|
|
10
|
7/0.52
|
0.6
|
1.5
|
23.9
|
1.6
|
19
|
30.9
|
1605
|
|
15
|
7/0.52
|
0.6
|
1.7
|
28.0
|
2.0
|
2.0
|
36.0
|
2280
|
|
20
|
7/0.52
|
0.6
|
1.7
|
|
2.0
|
2.1
|
39.9
|
2730
|
|
30
|
7/0.52
|
0.6
|
2.0
|
38.6
|
2.5
|
2.5
|
48.5
|
4075
|
|
50
|
7/0.52
|
0.6
|
2.2
|
48.9
|
2.5
|
2.7
|
59.3
|
5765
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 15,0000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
We are China 1 1.5 2.5 4 6 10mm Wire Multicore Soft Electric Wire 450/750V Electrical Wire Cable for Instrument manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Electric Cable, Henan Huadong Cable Co., Ltd., Power CableSimilar Or Related
-
China Professional Bare Manufacturer Aluminium ACSR Raven Conductor
-
4c Low Voltage for General XLPE Insulated Underground Cable
-

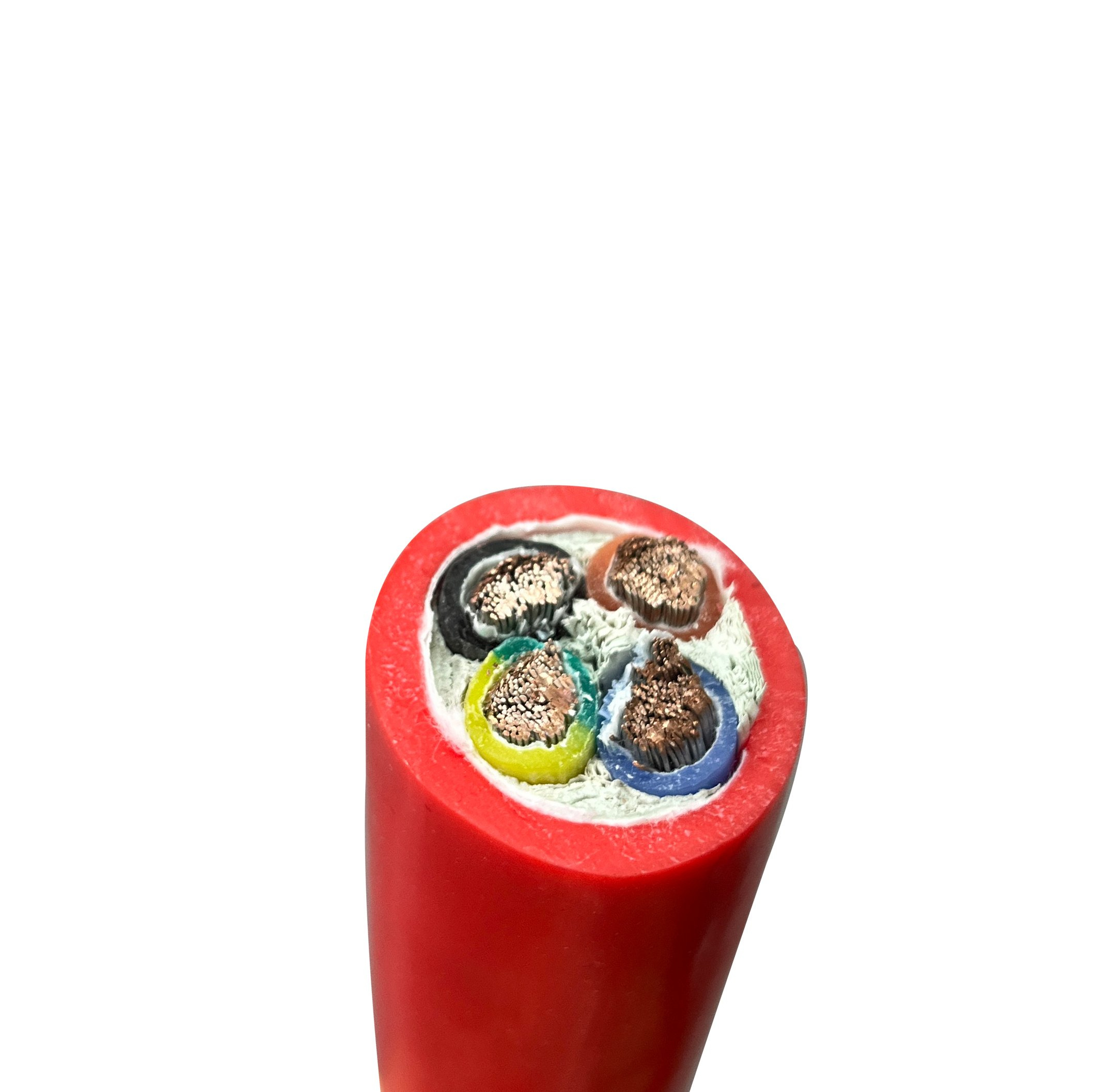

Henan Huadong Manufacturer Extra Soft Flexible High Temperature Silicone Cable
-
5/16 3/16 3/8 Inches 1n25PP 1n25pxz 1n25PTZ 1n32PP 4 Conductor Logging Cable
-

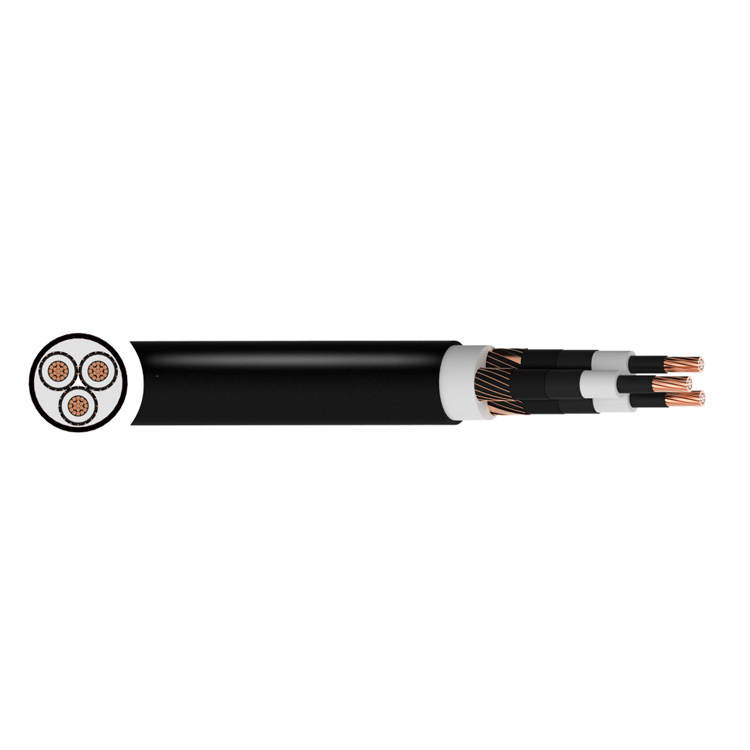

Mv XLPE Insulated 11kv 12kv 15kv 20kv 22kv 25kv 35kv PVC Swa Copper Wire Armoured Cable
