Yjv32 Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed N2xry Power Cable

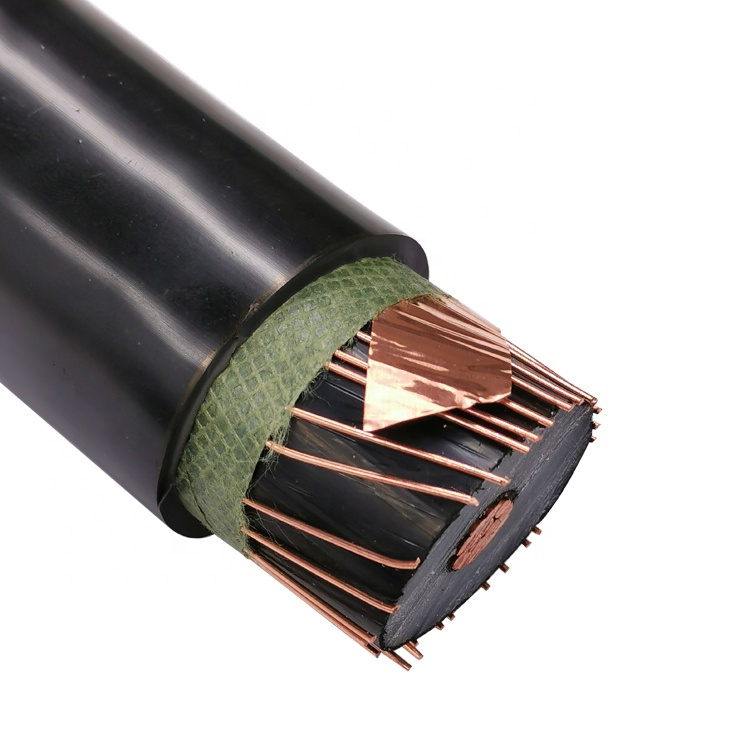

Yjv32 Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed N2xry Power Cable image

Get Latest Price Request a quote

Product Details

Current

DC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, CE

Model

YJV

Brand

Chunbin

Type

Insulated

Conductor Type

Stranded

Conductor Material

Copper

Range of Application

Underground

Rated Voltage

0.6/1kv

Number of Cores

1/2/3/4/5

Insulation

PVC

Packing

Roll

Conductor

Copper/Aluminum

MOQ

1000 Meters

Length

Lengths Customize

Product Name

Power Cable

Rated Temperature

70ºC

Transport Package

Cartons, Wooden Wheels, Soft

Trademark

Chunbin

Origin

Luoyang, Henan

Production Capacity

30, 000m/Week

Product Description

Conductor	Copper Wire
Insulation	XLPE/PVC Material
Application	Power Transmission,Building,Railway,School,Hospital,Plant construction,Underground and so on
Rated Voltage	0.6-1KV/1-35KV
Number of Cores	One Core or Multi Core
MOQ	1000 Meters

Application:

Conductor: Aluminum or Copper
Armoured: Non-Armoured
Insulation: XLPE/PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-630mm2
Standard: IEC 60502, BS 7870,BS5467,BS6724,GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.

Parameter

Conductor			Current – Carrying Capacity at 30° C *	Short current circuit at 1 sec
Nom. Cross Sect. (mm²)	DC Resistance at 20°C Max. (Ω/km)	AC Resistance at 90°C Max. (Ω/km)	in groundMax. (A)	Conductor MAX.(kA)	Screen MAX.(kA)
Nom. Cross Sect. (mm²)	DC Resistance at 20°C Max. (Ω/km)	AC Resistance at 90°C Max. (Ω/km)	in groundMax. (A)	Conductor MAX.(kA)	Screen MAX.(kA)
25	0.727	0.927	156	3.58	1.14
35	0.524	0.668	187	5.01	1.14
50	0.387	0.494	221	7.15	1.14
70	0.268	0.342	270	10.01	1.14
95	0.193	0.247	322	13.59	1.14
120	0.153	0.196	365	17.16	1.14
150	0.124	0.159	410	21.45	1.14
185	0.0991	0.128	461	26.46	1.14
240	0.0754	0.098	532	34.32	1.14
300	0.0601	0.079	598	42.9	1.14
400	0.047	0.063	677	57.2	1.14
500	0.0366	0.051	760	71.5	1.14
630	0.0283	0.041	848	90.09	1.14

Packing & Delivery

Package: Generally, pack in rolls or wooden drums. Accept customized service for free.

Rolls, Wooden Drums, Steel Drums, Reels

Delivery: Both 20GP container and 40GP container are supplied.
Air transportation, Sea transportation, Express delivery.

Our Factory

00:0

Chunbin Cable Group Co.,Ltd. was founded in 1989.it has five core subsidiaries,including copper processing,PVC cable pellets production and more than 50 cooperative enterprises,With more than 600 sales outlets nationwide.It is a specialized company integrating R&D manufacturing and sales.

Our company mainly produces:mineral insulated cable,photovoltaic cablecharging pile cable,OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, pvc insulated power cable,aluminum alloy cable,fire resistant cable,flame retardant cable,control cable. overhead insulated cable, low-smoke halogen-free cable,rubbercable,mining cable,aluminum stranded wire and steel core aluminum stranded wire,PVC insulated wire and cord,shielded monitoring line, protection More than 50 varieties, more than 1000 specifications,such as line,agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.

Certifications

Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.

FAQ

1.Are you a factory or trade company ?

We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.

2.Whether these products quality assured ?

Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.

3.When I want customized products, how to do?

Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer’s needs.

4.Can you send a sample for us to test?

If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.

5.If we want to purchase, how to pay ?

Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer’s request.

6.When you arrange delivery after we place an order ?

Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.

7.After I pay, what about shipping method?

Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
