Three Core Copper or Aluminum Conductor Sta XLPE Insulated Armoured Medium Voltage Power Cable

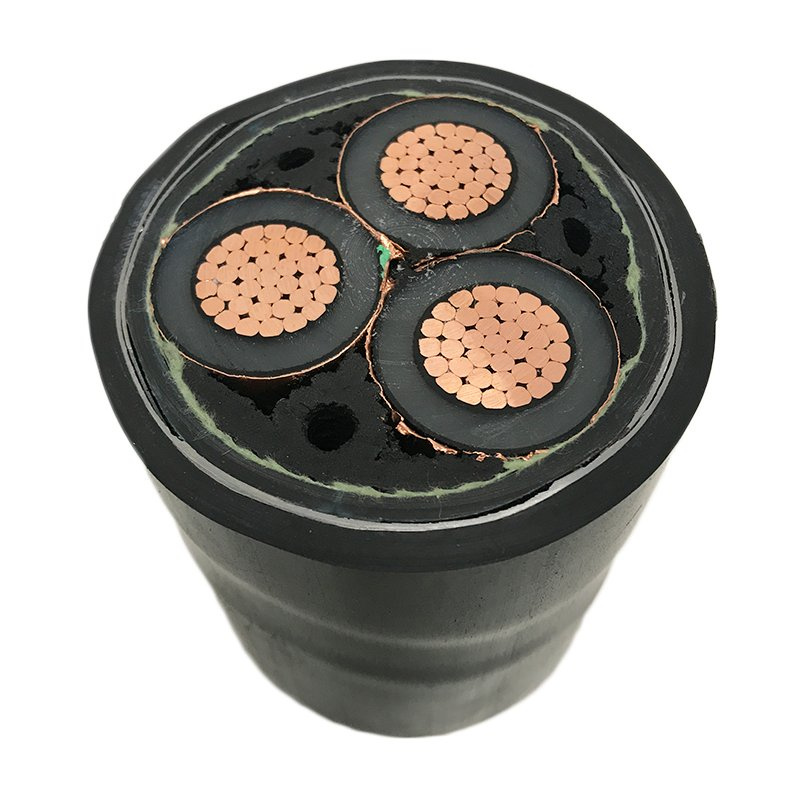

Three Core Copper or Aluminum Conductor Sta XLPE Insulated Armoured Medium Voltage Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

power cable

Current

DC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, CE, ISO9001, CE, CCC

Model

VV22/Yjv22/Yjlv22

Brand

Chunbin

Type

Insulated

Conductor Type

Stranded

Conductor Material

Copper

Range of Application

Underground

Rated Voltage

1~35kv

Number of Cores

1/2/3/4/5

Insulation

PVC

Packing

Roll

Conductor

Copper/Aluminum

MOQ

1000 Meters

Length

Lengths Customize

Product Name

Power Cable

Rated Temperature

70′c

Transport Package

Cartons, Wooden Wheels, Soft

Trademark

Chunbin

Origin

Luoyang, Henan

Production Capacity

30, 000m/Week

Product Description

Conductor	Copper Wire
Insulation	XLPE/PVC Material
Application	Power Transmission,Building,Railway,School,Hospital,Plant construction,Underground and so on
Rated Voltage	0.6-1KV/1-35KV
Section Area	1.5mm²–400mm²
Number of Cores	One Core or Multi Core
Armoured	Steel Wire Armoured/Steel Tape Armoured or Non Armoured
MOQ	1000 Meters

Application:
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.

Parameter

1). Rated Voltage, No. of Core and Range of Sectional Area

Rated voltage (kv) Sectional area (mm2) No. of core	1st class	0.6/1	1.8/3	3.6/6	6/10	8.7/15	12/20	18/30	21/35
Rated voltage (kv) Sectional area (mm2) No. of core	2nd class	1/1	3/3	6/6	8.7/10	12/15	18/20	–	26/35
1 Core		1.5-800	25-800	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
2 Core		1.5-185	25-185
3 Core		1.5-400	25-400	25-400	25-400	35-400	50-400	50-400	50-400
4 Core		2.5-400	25-400
5 Core		2.5-400	25-400

2). DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.

Nominal section area (mm2)	1.5	2.5	4	6	10	16	25	35	50	70	95	120	150	185	240	300	400	500	630	800
Copper core	12.1	7.41	4.61	3.08	1.83	1.15	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.099	0.0754	0.0601	0.047	0.0366	0.0283	0.0221
Aluminum core	18.1	12.1	7.41	4.61	3.08	1.91	1.2	0.868	0.641	0.443	0.32	0.253	0.206	0.164	0.125	0.1	0.778	0.0605	0.0469	0.0367

Packing & Delivery

Package: Generally, pack in rolls or wooden drums. Accept customized service for free.

Rolls, Wooden Drums, Steel Drums, Reels

Delivery: Both 20GP container and 40GP container are supplied.
Air transportation, Sea transportation, Express delivery.

Our Factory

00:0

Chunbin Cable Group Co.,Ltd. was founded in 1989.it has five core subsidiaries,including copper processing,PVC cable pellets production and more than 50 cooperative enterprises,With more than 600 sales outlets nationwide.It is a specialized company integrating R&D manufacturing and sales.

Our company mainly produces:mineral insulated cable,photovoltaic cablecharging pile cable,OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, pvc insulated power cable,aluminum alloy cable,fire resistant cable,flame retardant cable,control cable. overhead insulated cable, low-smoke halogen-free cable,rubbercable,mining cable,aluminum stranded wire and steel core aluminum stranded wire,PVC insulated wire and cord,shielded monitoring line, protection More than 50 varieties, more than 1000 specifications,such as line,agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.

Certifications

Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.

FAQ

1.Are you a factory or trade company ?

We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.

2.Whether these products quality assured ?

Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.

3.When I want customized products, how to do?

Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer’s needs.

4.Can you send a sample for us to test?

If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.

5.If we want to purchase, how to pay ?

Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer’s request.

6.When you arrange delivery after we place an order ?

Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.

7.After I pay, what about shipping method?

Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
