Tape Chola 600V Duadruplex XLPE Insulation ACSR Messenger Wire Cable Overhead Service Drop Cable ABC PVC Low Voltage

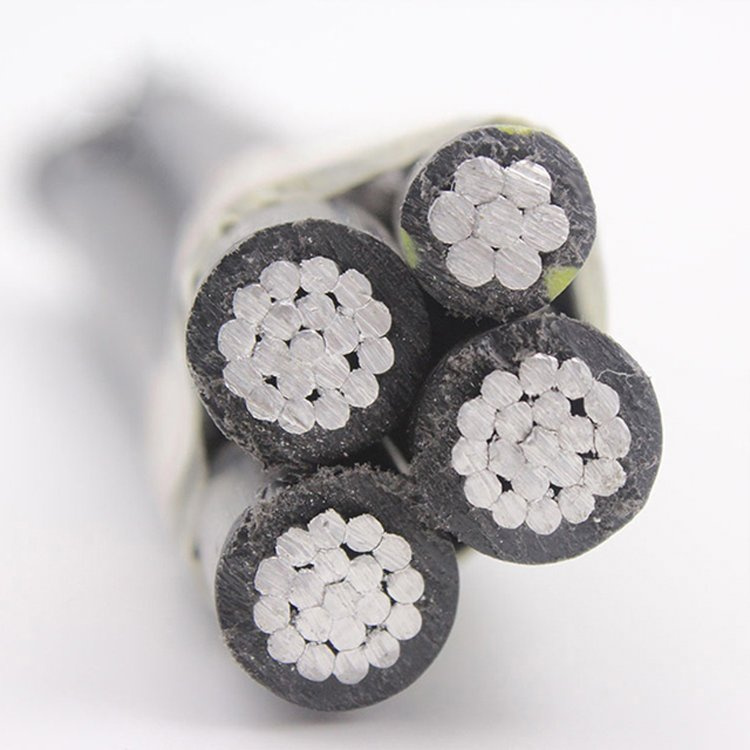

Tape Chola 600V Duadruplex XLPE Insulation ACSR Messenger Wire Cable Overhead Service Drop Cable ABC PVC Low Voltage image

Get Latest Price Request a quote

Product Details

Model NO.

ABC Cable

Application

Overhead

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Overhead

Certification

ISO9001, CE, CCC

Brand

Chunbin

Rated Voltage

0.6/1kv

Number of Cores

1/2/3/4/5

Insulation

PVC

Packing

Roll

Conductor

Aluminum

MOQ

1000 Meters

Length

Lengths Customize

Product Name

Overhead Cable

Rated Temperature

70′c

Transport Package

Cartons, Wooden Wheels, Soft

Trademark

Chunbin

Origin

Luoyang, Henan

Production Capacity

30, 000m/Week

Product Description

Products Description

Conductor	Aluminum
Insulation	XLPE/PVC/PE
Application	Construction
Rated Voltage	600V-1000V/1KV-35KV
Number of Cores	One Core or Multi-Cores
MOQ	1000 Meters

OVERHEAD CABLE

ABC cables primarily used for 120 volt overhead service applications such as street lighting.outdoor lighting.and temporary service for construction. To be used at voltage of 600 volts phase- to -phase or less and at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90’C for crosslinked polyethylene(XLPE) insulated conductors.

Parameter

Code Name	Phase Conductor			Bare Neutral Messenger			Weight Per 1000ft(lbs)		Rating (Amps)
Code Name	Size AWG	Strand	Insulation Thickness (mls)	Size AWG	Strand	Breaking Strength(lbs)	XLPE	Poly	XLPE	Poly
AAC NEUTRAL-MESSENGER
Clydesdale	4	Solid	45	4	7	881	208	201.8	100	80
Pinto	4	7/w	45	4	7	881	223	207.9	100	80
Mustang	2	7/w	45	2	7	1350	333	312.6	135	105
Criollo	1/0	19/w	60	1/0	7	1990	529	504.5	180	140
Percheron	2/0	19/w	60	2/0	7	2510	649	620.5	205	160
Hanoverian	3/0	19/w	60	3/0	19	3310	799	765.6	235	185
Oldenburg	4/0	19/w	60	4/0	19	4020	986	946.7	275	210
Lippizaner	336.4	19/w	80	336.4	19	6146	1546	1519.2	370	280
ACSR NEUTRAL-MESSENGER
Morochuca	6	Solid	45	6	6/1	1190	152	147.4	75	60
Chola	6	7/w	45	6	6/1	1190	162	151.7	75	60
Morgan	4	Solid	45	4	6/1	1860	226	220	100	80
Hackney	4	7/w	45	4	6/1	1860	241	226.1	100	80
Palomino	2	7/w	45	2	6/1	2850	362	342.6	135	105
Costena	1/0	19/w	60	1/0	6/1	4380	575	550.6	180	140
Grullo	2/0	19/w	60	2/0	6/1	5310	707	678.7	205	160
Suffolk	3/0	19/w	60	3/0	6/1	6620	872	838.9	235	185
Appaloosa	4/0	19/w	60	4/0	6/1	8350	1079	1039.2	275	210
Bronco	336.4	19/w	80	336.4	18/1	8580	1613	1568.2	370	280
Gelding	336.4	19/w	80	4/0	6/1	8350	1548	1494.3	370	280
6201 ALLOY NEUTRAL-MESSENGER
Bay	6	Solid	45	6	7	1110	145	140	75	60
French Coach	6	7/w	45	6	7	1110	155	144.3	75	60
German Coach	4	Solid	45	4	7	1760	215	208.3	100	80
Arabian	4	7/w	45	4	7	1760	229	214.4	100	80
Belgian	2	7/w	45	2	7	2800	344	323.1	135	105
Shetland	1/0	19/w	60	1/0	7	4460	546	521.1	180	140
Thoroughbed	2/0	19/w	60	2/0	7	5390	670	641.5	205	160
Trotter	3/0	19/w	60	3/0	7	6790	825	791.8	235	185
Walking	4/0	19/w	60	4/0	7	8560	1019	979.7	275	210

Packing & Delivery

Package: Generally, pack in rolls or wooden drums. Accept customized service for free.

Rolls, Wooden Drums, Steel Drums, Reels

Delivery: Both 20GP container and 40GP container are supplied.
Air transportation, Sea transportation, Express delivery.

Our Factory

00:0

Chunbin Cable Group Co.,Ltd. was founded in 1989.it has five core subsidiaries,including copper processing,PVC cable pellets production and more than 50 cooperative enterprises,With more than 600 sales outlets nationwide.It is a specialized company integrating R&D manufacturing and sales.

Our company mainly produces:mineral insulated cable,photovoltaic cablecharging pile cable,OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, pvc insulated power cable,aluminum alloy cable,fire resistant cable,flame retardant cable,control cable. overhead insulated cable, low-smoke halogen-free cable,rubbercable,mining cable,aluminum stranded wire and steel core aluminum stranded wire,PVC insulated wire and cord,shielded monitoring line, protection More than 50 varieties, more than 1000 specifications,such as line,agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.

Certifications

Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.

FAQ

1.Are you a factory or trade company ?

We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.

2.Whether these products quality assured ?

Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.

3.When I want customized products, how to do?

Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer’s needs.

4.Can you send a sample for us to test?

If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.

5.If we want to purchase, how to pay ?

Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer’s request.

6.When you arrange delivery after we place an order ?

Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.

7.After I pay, what about shipping method?

Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.

We are China Tape Chola 600V Duadruplex XLPE Insulation ACSR Messenger Wire Cable Overhead Service Drop Cable ABC PVC Low Voltage manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
