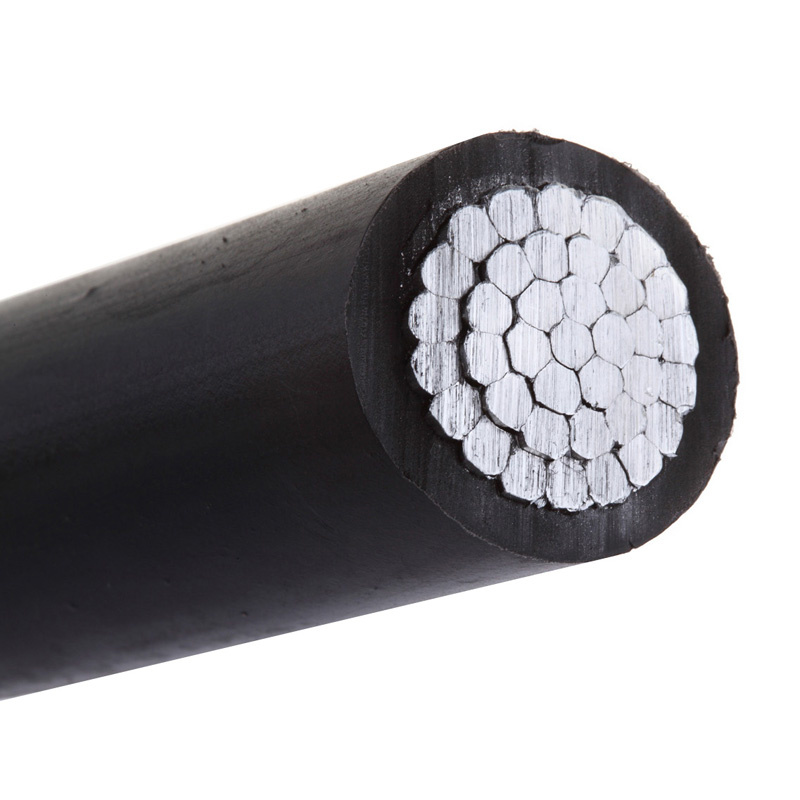

Single Core XLPE Insulated Power Cable

XLPE Insulated Power Cable

1.Standard of XLPE Cable

According to GB12706(Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.

2.Rated Voltage of XLPE Cable

Extruded XLPE insulation with rated voltage from 0.6/1kv to 8.7/15kv

3.Construction of XLPE Cable

Conductor:Aluminium or Copper

Insulation:XLPE

Armoured:Galvanized steel tape,Galvanized steel wire

Outer Sheath:PVC OR PE

The number of core:1,2,3,3+1,3+2,4+1,5

We will try our best to meet the customer’s requirement.

4.Characteristic of XLPE Cable

_* Max.Permissible continous operating temperature of Conductors shall not exceed 90ºC

_* Not exceeding 250ºC.(Max. Duration5 seconds)

_* The lowest temperature of installation is 0ºC.

_* Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables

5.Description & Application of PVCE Cable



6.Advantage

a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs

single core

two cores

three cores

four cores

five cores
