Round or Flat Multicore Cable

Round or Flat Multicore Cable image

Get Latest Price Request a quote

Product Details

Model NO.

TVVB Flat flexible elevator cable (60227IEC71f)

Insulation Material

PVC

Sheath Material

PVC

Material Shape

Flat Wire

Wire Core Material

Red Copper Wire

Certification

ISO, CCC, CE

Model

Tvvbg Tvv Evvf

Brand

Qifan

Working Temperature

-15ºC~+70ºC

Min. Bending Radius

0.3m

Suspend Diameter

430mm-500mm

Max.Travelling Speed

4m/S

Standards

Chinese/Japan National Standards

Color

Red, Gray, Black

Transport Package

Wood Drum

Specification

48C*0.75

Trademark

QIFAN

Origin

China

HS Code

8544492100

Production Capacity

5000km/Month

Product Description

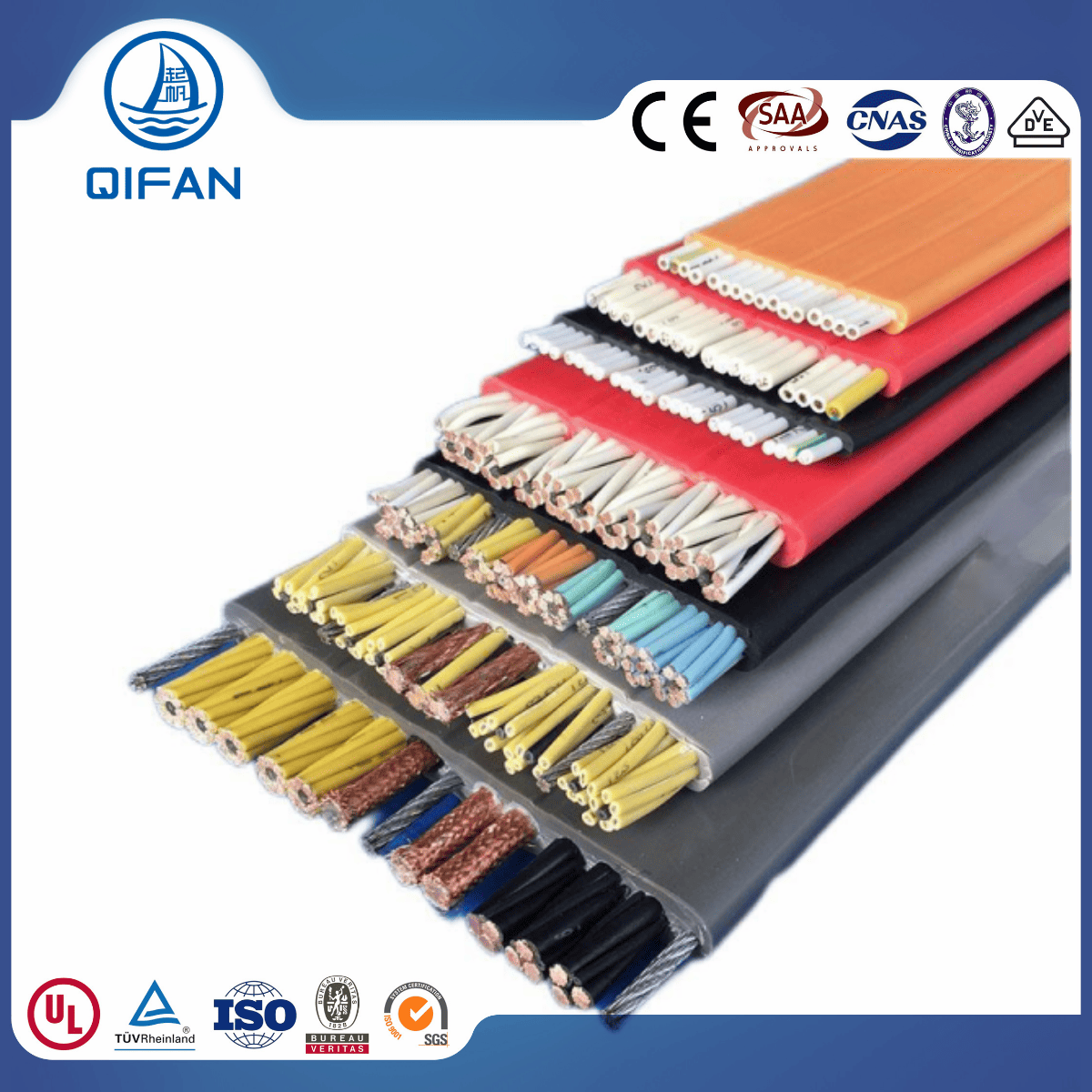

Round or Flat Multicore Cable

QIFAN CABLE offers a versatile solution for elevator travel with our Round or Flat Multicore Cable. This cable is available in both round and flat designs, allowing you to choose the best option for your specific needs.

Features:

Conductor: Bare Copper

Insulation: PVC

Jacket: PVC

Cores: 3cores, 4cores, 5cores, … 12cores, … 60cores

Rated Voltage: cross section ≤1.5mm², 300V/500V; cross section >1.5mm², 450V/750V

Test voltage: 2500V

Working Temperature: -15ºC to +70ºC

Min. Bending Radius: 0.3m

Standards: GB5023.6, IEC60227-6

Application:

The TVVB flat elevator cable is specifically designed for flexible suspension lengths within 80 meters. It provides reliable and efficient performance for elevator systems.

Customize Service:

In addition to our standard Round or Flat Multicore Cable, QIFAN CABLE also offers customized composite cables to meet your specific requirements. These cables can include control and coaxial cables for elevators and moving machine parts. They have a smaller bending radius compared to round cables, ensuring flexibility and ease of installation.

Our customization options include:

Coaxial cable: RG59, RG6, SYV75-2, SYV75-3

Network cable: Cat5e, Cat6

Control Cable: RVVP-2*0.75mm², or other shielded cable

Steel wire, reinforcing steel wire, and various other specifications of high tensile strength

Choose QIFAN CABLE for high-quality, reliable, and customizable Round or Flat Multicore Cable solutions. Contact us today for more information.

Item	Copper conductor PVC Insulation Sheath elevator flat travelling shielded cable
Insulation Material	PVC
Sheath Material	PVC
Color	Black, Grey, Orange or your request
Conductor Material	Copper
Rated Voltage	300/500V,450/750V
MOQ Capacity	100 meters
Temperature Range	-15ºC~ +70ºC
Minimum Bending Radius	0.3m<L<0.6m
Certifications	CCC,ISO9001,CE

We are China Round or Flat Multicore Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
