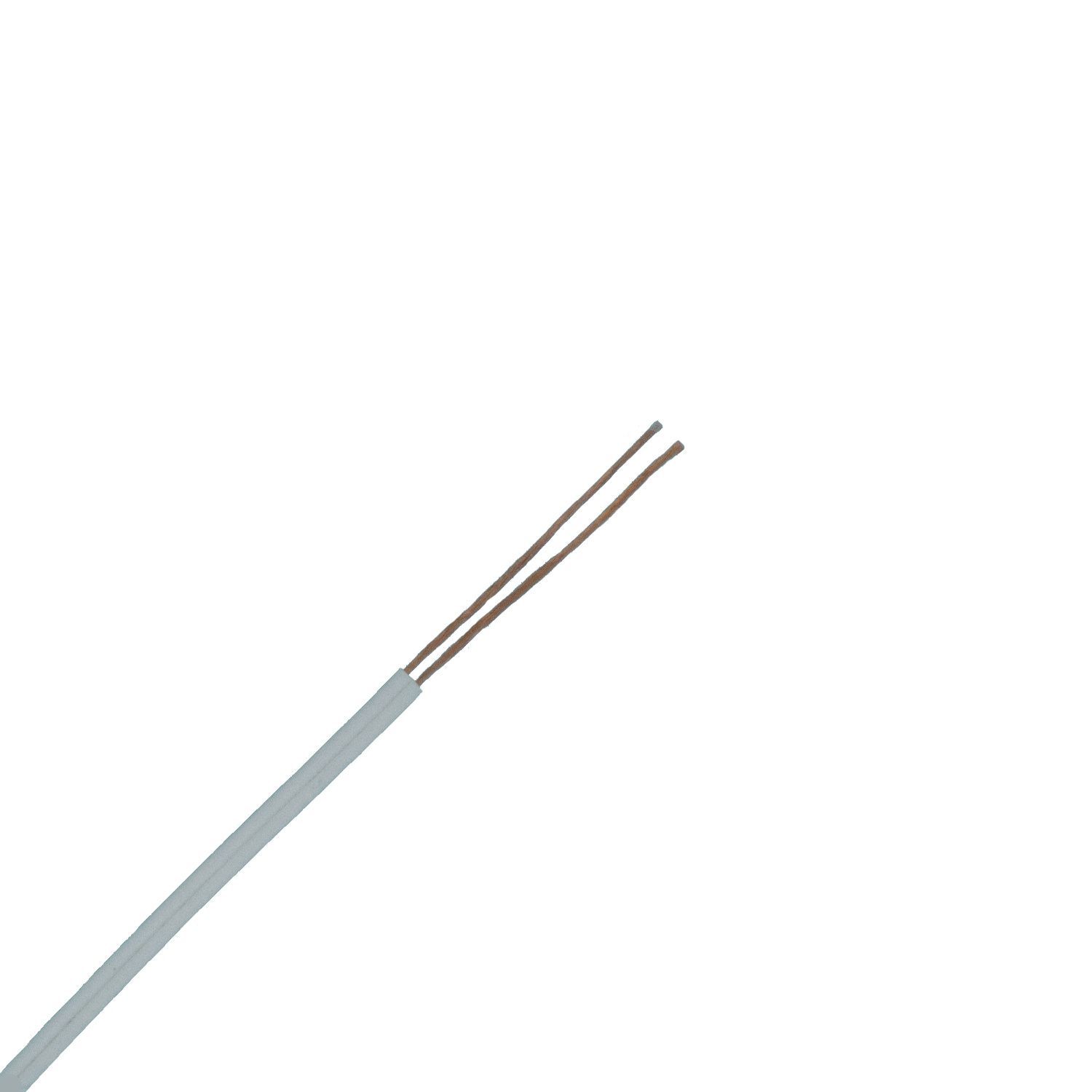

Power Cable Electronic Equipment Cu Conductor PVC Insulated Wire BV

Power Cable Electronic Equipment Cu Conductor PVC Insulated Wire BV image

Get Latest Price Request a quote

Product Details

Model NO.

Conductor Material

Copper

Sheath Material

None

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Building Wire

Certification

ISO9001, CE, SGS TUV

Brand

Ume

Third Party Inspection

Accepted

Sample

Free

Color

Customer Specified

OEM

Accepted

Transport Package

Drum

Specification

Trademark

UME

Origin

China

HS Code

3904109090

Production Capacity

500, 000km Per Month

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES – HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

1. Applications
Use as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. The cable can be of flame ratardance, fire resistance and other property.

2. Standards
H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05

H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004
Cross Section (mm2)	Conductor Construction (No/mm)	Insulation Thickness (mm)	Overall Diameter Max (mm)	Min Insulation Resistance@ 70ºC (ohm/Km)	Weight Approx (Kg/Km)
1×0.5	1/0.80	0.6	2.4	0.015	8
1×0.75	7/0.97	0.6	2.8	0.012	11
1×0.75	1/0.97	0.6	2.6	0.012	11
1×1.0	7/0.43	0.6	3.0	/	14
1×1.0	1/1.13	0.6	2.8	0.011	14
1×1.5	7/0.52	0.7	3.4	0.010	21
1×1.5	1×1.38	0.7	3.3	0.011	20
1×2.5	7/0.67	0.8	4.2	0.009	32
1×2.5	1×1.78	0.8	3.9	0.010	31
1×4	7/0.85	0.8	4.8	0.0077	45
1×4	1/2.25	0.8	4.4	0.0085	45
1×6	7/1.04	0.8	5.4	0.0065	65
1×6	1/2.76	0.8	4.9	0.0070	65
1×10	7/1.35	1.0	6.8	0.0065	110
1×10	1/3.57	1.0	6.4	0.0070	110
1×16	7/1.70	1.0	8.0	0.0050	165
1×25	7/2.14	1.2	9.8	0.0050	264
1×35	7/2.52	1.2	11.0	0.0040	360
1×50	19/1.78	1.4	13.0	0.0045	490
1×70	19/2.14	1.4	15.0	0.0035	685
1×95	19/2.52	1.6	17.5	0.0035	946
1×120	37/2.03	1.6	19.0	0.0032	1181
1×150	37/2.25	1.8	21.0	0.0032	1453
1×185	37/2.52	2.0	23.5	0.0032	1821
1×240	61/2.24	2.2	26.5	0.0032	2383
1×300	61/2.50	2.4	29.5	0.0030	2983
1×400	61/2.85	2.6	33.5	0.0028	3800

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

Production:

Raw material inspection and test
Production process test
Unqualified product control
Regular test and examination
Finished product inspection

UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s’ Conductor.

Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.

We are China Power Cable Electronic Equipment Cu Conductor PVC Insulated Wire BV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
