Oxygen-Free Copper Core Flame-Retardant 1core 3 Core 3X35mm2 Yjv Cable

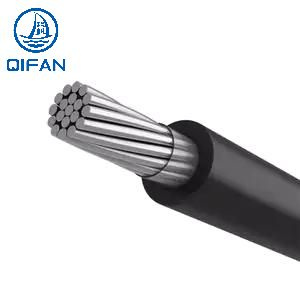

Oxygen-Free Copper Core Flame-Retardant 1core 3 Core 3X35mm2 Yjv Cable image

Get Latest Price Request a quote

Product Details

Model NO.

YJV

Current

AC Cable

Insulation Material

XLPE

Sheath Material

PVC/XLPE

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, CE, RoHS, VDE

Model

YJV

Brand

Qinshan

Name

PVC/XLPE Power Cable

Market

Global

Hot Sale Size

70mm, 120mm,400mm,95mm

Other Core

1 Core, 3 Core

Type

Middle Voltage

3.6/6kv

Transport Package

Wooden Drum

Specification

1x25~1000mm2; 3x25~400mm2

Trademark

QINSHAN

Origin

China

HS Code

8544492100

Production Capacity

8000000meters/Month

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 5.00cm

Package Gross Weight

0.500kg

Product Description

Oxygen-free Copper Core Flame-retardant 1core 3 core 3x35mm2 Yjv Cable

Introduction:

For XLPE insulated power cable, either chemical method or physical method is employed to transform the molecular structure of PE from chain into three-dimensional network, i.e. thermo-plastic PE is transformed into thermosetting XLPE. After cr·oss-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent electrical property are still retained.

The maximum permissible operating of the conductor of a XLPE insulated power cable is 90°C.which is higher than that of paper, PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

The mechanical and electrical properties of these cables are accordant with GB/T12706-2002 Power cables extruded insulation and their accessories of elated voltages 1kV(Um=1.2kV)up to 35kV(Um=40.5kV) and IEC60502-1997 Extruded insulation power cables and appendices for rated voltages 1kV up to 30kV.

Description:

1) Rated Voltage: 3.6/6KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 1×25 – 1000mm2,3×25 – 400mm2
6) Insulation: XLPE
7) No. of cores: 1, 3
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC/XLPE
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c:

Stardand:

IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)

Application:

Type	Conductor	Application
YJV/YJLV	CU/AL	For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid.
YJV_22/YJLV₂₂	CU/AL	For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force.
YJV_32/YJLV₃₂	CU/AL	For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force.

Technical Parameters:

Nominal cross sectional area of conductor(mm²)	lnsulation thickness (mm)	Sheath thickness (mm)	Approx. overall diameter of cable(mm)	Approx.weight Of cable (kg/km)		D.C resistance of conductor(Ω/km)		Testing voltage A.C	Current rating
				Approx.weight Of cable (kg/km)		D.C resistance of conductor(Ω/km)		Testing voltage A.C	In air(A)		Direct in soil(A)
				Cu	AI	Cul	Al	(kV/5min)	Cu	Al	Cu	Al
1×25	2.5	1.5	18.00	619	464	≤0.7270	≤1.2000	12.5	135	105	150	115
1×35	2.5	1.5	19.00	737	520	≤0.5240	≤0.8680	12.5	165	130	180	135
1×50	2.5	1.6	20.00	901	591	≤0.3870	≤0.6410	12.5	200	155	215	160
1×70	2.5	1.6	22.00	1128	694	≤0.2680	≤0.4430	12.5	250	185	265	200
1×95	2.5	1.7	23.00	1391	802	≤0.1930	≤0.3200	12.5	305	235	315	240
1×120	2.5	1.8	25.00	1655	911	≤0.1530	≤0.2530	12.5	355	275	360	270
1×150	2.5	1.8	26.00	1961	1031	≤0.1240	≤0.2060	12.5	405	315	405	305
1×185	2.5	1.9	28.00	2334	1187	≤0.0991	≤0.1640	12.5	465	360	455	345
1×240	2.6	1.9	30.00	2904	1416	≤0.0754	≤0.1250	12.5	550	430	530	400
1×300	2.8	2.0	33.00	3547	1687	≤0.0601	≤0.1000	12.5	635	495	595	455
1×400	3.0	2.2	37.00	4572	2092	≤0.0470	≤0.0778	12.5	745	585	680	520
1×500	3.2	2.3	41.00	5630	2530	≤0.0366	≤0.0605	12.5	855	685	765	595
1 x630	3.2	2.4	45.00	6922	3016	≤0.0283	≤0.0469	12.5	980	800	860	680
1 x 800	3.2	2.5	55.00	8252	3212	≤0.0221	≤0.0367	12.5	1130	930	950	765
1×1000	3.2	2.6	54.80	10548	4248	≤0.0176	≤0.0291	12.5	1240	1050	1040	850
3×25	2.5	2.1	37.00	1858	1391	≤0.7270	≤1.2000	12.5	120	93	125	100
3 x35	2.5	2.2	39.00	2244	1589	≤0.5240	≤0.8680	12.5	145	110	155	120
3×50	2.5	2.3	40.00	2767	1832	≤0.3870	≤0.6410	12.5	175	135	180	140
3 x70	2.5	2.4	45.00	3494	2186	≤0.2680	≤0.4430	12.5	215	170	220	170
3 x 95	2.5	2.5	48.00	4334	2558	≤0.1930	≤0.3200	12.5	265	205	265	210
3×120	2.5	2.6	51.00	5181	2938	≤0.1530	≤0.2530	12.5	305	230	300	235
3 × 150	2.5	2.7	54.00	6154	3350	≤0.1240	≤0.2060	12.5	345	270	340	260
3 x 185	2.5	2.9	58.00	7334	3876	≤0.0991	≤0.1640	12.5	400	310	380	300
3×240	2.6	3.0	63.00	9146	4660	≤0.0754	≤0.1250	12.5	470	365	435	345
3×300	2.8	3.2	69.00	11176	5568	≤0.0601	≤0.1000	12.5	535	420	485	390
3 x 400	3.0	3.5	77.00	14359	6882	≤0.0470	≤0.0778	12.5	620	495	520	440

Product Show:

We are China Oxygen-Free Copper Core Flame-Retardant 1core 3 Core 3X35mm2 Yjv Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
