Mcptj Mining Cable, Mobile Flame Retardant for Coal Mines

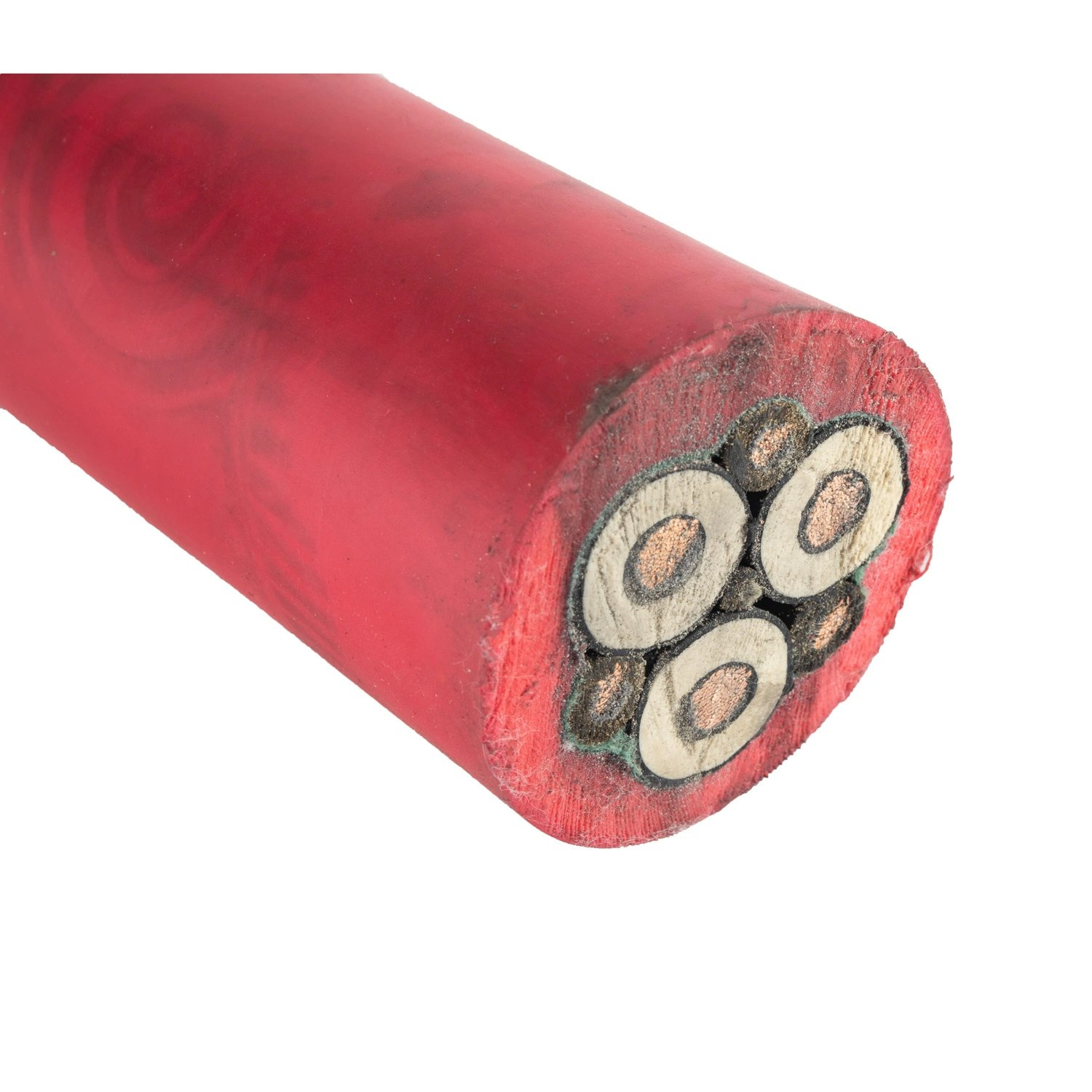

Mcptj Mining Cable, Mobile Flame Retardant for Coal Mines image

Get Latest Price Request a quote

Product Details

Model NO.

Low & Medium Voltage

Insulation Material

Rubber

Material Shape

Round Wire

Certification

ISO, CCC, CE, RoHS

Type

Insulated

Length of Each Roll

100meter

Cross Section

10mm2-240mm2

Applicable Voltage Range

450/750V

Service

OEM ODM Accept

Transport Package

Customize

Specification

Customize

Trademark

QINSHAN

Origin

China

HS Code

8544492900

Production Capacity

6000000meters/Year

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 5.00cm

Package Gross Weight

0.500kg

Product Description

MCPTJ mining cable, mobile flame retardant for coal mines

Application:

Mining cables are often used to transport power deep into a mineshaft for powering and controlling mining equipment. They’re often subjected to mechanical abuse, extreme weather, extreme temperatures, moisture, abrasion, corrosive agents and highly explosive atmospheres. Due to the unforgiving environment, special standards are mandated for cables and electrical distribution in both open-pit and underground mining.

Properties:

This product is the rubber sheath flexible cable series used in coal-mining. It is for rated voltage Uo/U 0.38/0.66 and Uo/U
0.66/1.14kV used in coal mining machines installation equipment to connect power supply . It can be shifted as you like .

Conductors: Copper, aluminum
Separator: A suitable tape separator between the conductor and insulation.
Insulation: Rubber/XLPE/PVC Insulation Cable

Outer sheath: Rubber

Structure:

1.The rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
2.Permissible operating temperature:-35°C to 65°C.
3.The minimum bending radius is over 6 times of cable diameter
4.The yellow sheath cable should not be exposed in the sun for long

Tecnical Parametter:

Model	Name	Application
MC	Flexible coal cutter cable	Power connection for mining coal cutter and the similar equipment
MCP	Flexible coal cutter cable with metal shielded	Power connection for mining coal cutter and the similar equipment
MCPT	Flexible coal cutter rubber sheath cable with screen	Power connection for mining coal cutter and the similar equipment
MCPTJ	Flexible coal cutter rubber sheath cable with screen	Power connection for mining coal cutter and the similar equipment
MY	Mobile rubber sheath cable	Power connection for various mobile coal mining equipment
MYP	Mobile shielded rubber sheath cable	Power connection for various underground coal mining equipment
MYPT	Mobile metal shield rubber mine cable	Power connection for various underground coal mining equipment
MYPTJ	Mobile mining cable with monitoring core and semi-conducting screen	Power connection for underground mobile transformers and similar equipment
MYQ	Flexible mobile light-duty rubber mine cable	For illuminating mine,interlocking and controlling conveyers,power connecting with signal equipment

MC/MCP – 0.38/0.66 KV Mining Cable Parameter
Cores No.x conductor nominal section mm²			Nominal Thickness mm		Cable outer dia mm
Power core	Ground core	Power core insulation	Sheath	MC – 0.38/0.66 KV	MCP – 0.38/0.66 KV
3 X 16	1 X 4	1.6	4.5	29.5-34.5	33.0-38.0
3 X 25	1 X 6	1.8	5.5	36.0-41.0	39.0-45.0
3 X 35	1 X 6	1.8	5.5	39.0-45.0	42.5-48.5
3 X 50	1 X 10	2	5.5	44.0-50.5	47.5-54.5
3 X 70	1 X 16	2	6	50.0-57.5	53.0-60.5
3 X 95	1 X 25	2.2	6	56.0-63.5	59.5-67.0
3 X 120	1 X 25	2.4	6	60.5-68.5	63.5-72.0

MCP – 0.66/1.14 KV Mining Cable Parameter
Cores No.x conductor nominal section mm²			Nominal Thickness mm			Cable outer dia
Power core	Ground Core		Power Core Insulation	Sheath		mm
Power core	A	B	Power Core Insulation	A	B	A	B
3×25	1×6	/	2	6	/	41-47	/
3×35	1×6	3×10/3	2	6	7	44-51	53.0-58.5
3×50	1×10	3×16/3	2.2	7	7.5	51.5-59.0	60.0-67.0
3×70	1×16	3×25/3	2.2	7	7.5	56.0-63.5	65.0-72.0
3×95	1×25	3×25/3	2.4	7	7.5	62.0-70.5	70.0-73.0
3×120	1×25	3×35/3	2.6	7	7.5	66.5-75.5	75.0-82.0
3×150	1×35	3×50/3	2.6	7	7.5	71.5-80.5	77.5-86.0
MCP-1.9/3.3 KV Mining Cable Parameter
3×25	1×10	/	2.8	6	/	44.5-51.0	/
3×35	1×10	3×16/3	2.8	6	7	48.0-54.5	59.0-64.0
3×50	1×16	3×25/3	2.8	7	7.5	54.0-61.5	63.0-69.0
3×70	1×25	3×35/3	3	7	7.5	60.0-67.0	68.0-75.0
3×95	1×25	3×35/3	3	7	7.5	65.0-72.5	69.0-78.0
3×120	1×35	3×50/3	3.2	7	7.5	69.5-77.5	74.0-84.5
3×150	1×35	3×50/3	3.2	7	7.5	74.0-82.5	78.5-88.0

Product Show:

We are China Mcptj Mining Cable, Mobile Flame Retardant for Coal Mines manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
