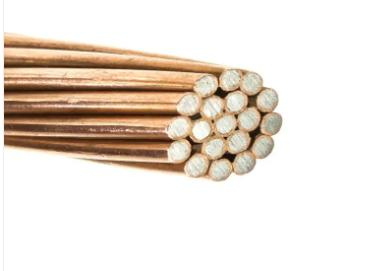

Coper Clad Steel Wire Conductor Galvanized Steel Wire Strand

Coper Clad Steel Wire Conductor Galvanized Steel Wire Strand image

Get Latest Price Request a quote

Product Details

Model NO.

Copper clad steel wire conductor

Insulation Material

Bare

Sheath Material

Bare

Material Shape

Round Wire

Wire Core Material

Copper/Steel

Certification

ISO, CCC, CE

Model

ACSR 1503mm2 100mm2 125mm2

Brand

Kingyear

Product Name

Bare Overhead Conductor

Model Name

ACSR 1503mm2 100mm2 125mm2

Third Party Inspection

Accepted

OEM

Accepted

Price Quote

1-24 Hours

Delivery

5-20 Days

Hot Sale Countries

Philippine,Yemen,Vietnam, Indonesia,Indonesia,Afr

Standard

NFC 33209/ Oeca/BS/NBR/Gbt/SIP2/SIP4/SIP6

Hot Sell Size

50mm2 70mm2 95mm2 to 1000mm2

Sample

Free

Transport Package

Wooden Reel

Specification

ACSR 1503mm2 100mm2 125mm2

Trademark

KINGYEAR

Origin

Henan

HS Code

7614900000

Production Capacity

15000tons/Year

Product Description

Coper clad steel wire conductor galvanized steel wire strand

AAC AAAC CONDUCTOR PRICE INQUIRY

KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor(AAC/AAAC/ACSR),ABC overhead cable as below.

The technical data of Coper clad steel wire conductor galvanized steel wire strand as below for reference:

Duplex service drop
Code Name	Phase conductor				Bare Neutral Message		Nominal Weight ( kg/km )		Allowable Ampacity
	Phase conductor				Bare Neutral Message		Nominal Weight ( kg/km )		Allowable Ampacity
	Size & No.of wires	Insulation Thick(mm)	Nominal Diameter (mm)		Size & No.of wires	Rated Strength (kg)	XLPE	Aluminum	( A )
			Nominal Diameter (mm)
			Bare	OD
AAC
Pekingese	6-Solid	1.14	4.1	6.4	6-7	255	20.8	72.9	78
Collie	6-7	1.14	4.6	6.9	6-7	255	23.8	72.9	78
Cocker	6-7	1.52	4.6	7.7	6-7	255	32.7	72.9	78
Dachshund	4-Solid	1.14	5.2	7.5	6-7	400	26.8	114.6	103
Spaniel	4-7	1.14	5.9	8.2	6-7	400	29.8	116.1	103
Cairn	4-7	1.52	5.9	8.9	6-7	400	40.2	116.1	103
Doberman	2-7	1.14	7.4	9.7	2-7	612	38.7	184.5	136
Airedale	1-19	1.52	8.4	11.5	1-7	–	56.5	233.6	158
Basset	1/0-7	1.52	9.3	12.4	1/0-7	903	64	294.7	182
Malemure	1/0-19	1.52	9.4	12.5	1/0-7	903	64	294.7	182
AAAC
Chihuahua	6-Solid	1.14	4.1	6.4	6-7	499	20.8	72.9	78
VIzsla	6-7	1.14	4.6	6.9	6-7	499	23.8	72.9	78
Harrier	4-Solid	1.14	5.2	7.5	4-7	798	26.8	116.1	103
Whippet	4-7	1.14	5.9	8.2	4-7	798	29.8	116.1	103
Schnauzer	2-7	1.14	7.4	9.7	2-7	1270	38.7	184.5	136
Afghan	1/0-7	1.52	9.3	12.4	1/0-7	2023	64	296.1	182
Hocler	1/0-19	1.52	9.4	12.5	1/0-7	2023	64	296.1	182
ACSR
Setter	6-Solid	1.14	4.1	6.4	6/6/01	540	20.8	72.9	78
Shepherd	6-7	1.14	4.6	6.9	6/6/01	540	23.8	72.9	78
Retriever	6-7	1.52	4.6	7.7	6/6/01	540	32.7	72.9	78
Eskimo	4-Solid	1.14	5.2	7.5	4/6/01	844	26.8	114.6	103
Terrier	4-7	1.14	5.9	8.2	4/6/01	844	29.8	116.1	103
Yorkshirc	4-7	1.52	5.9	8.9	4/6/01	844	40.2	116.1	103
Chow	2-7	1.14	7.4	9.7	2/6/01	1293	38.7	184.5	136
Labrador	1-19	1.52	8.4	11.5	1/6/01	1610	56.5	233.6	158
Bloodhound	1/0-7	1.52	9.3	12.4	1/0-6/1	1987	64	294.7	182
Bull	1/0-19	1.52	9.4	12.5	1/0-6/1	1987	64	294.7	182

Applications of AAC AAAC Conductor	To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Applications of AAC AAAC Conductor	To supply power from the utility’s lines to the consumer’s weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation.
Applications of AAC AAAC Conductor	Used to supply 3 phase power, usually from a polemounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors

Some Aluminum/Aluminium Alloy AAAC Conductor shown as below:

After more than 10 years of development, our customers have spread to more than 40 countries and regions around the world, of which more than 50% are old customers.our power cable,control cable,ABC overhead cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality-KINGYEAR CABLE.

The packaging of Coper clad steel wire conductor galvanized steel wire strand as below, customized is accepted.

FAQ
Q:I didn’t find the cable which I need in this page?
A:If you didn’t find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What’s your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What’s your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses..
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.

If Any interesting of the ectric wire,power cable, rubber cable,control cable,bare conductor(AAC/AAAC/ACSR),ABC overhead cable can email us freely:

price inquiry !!!
∨∨∨

We are China Coper Clad Steel Wire Conductor Galvanized Steel Wire Strand manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
