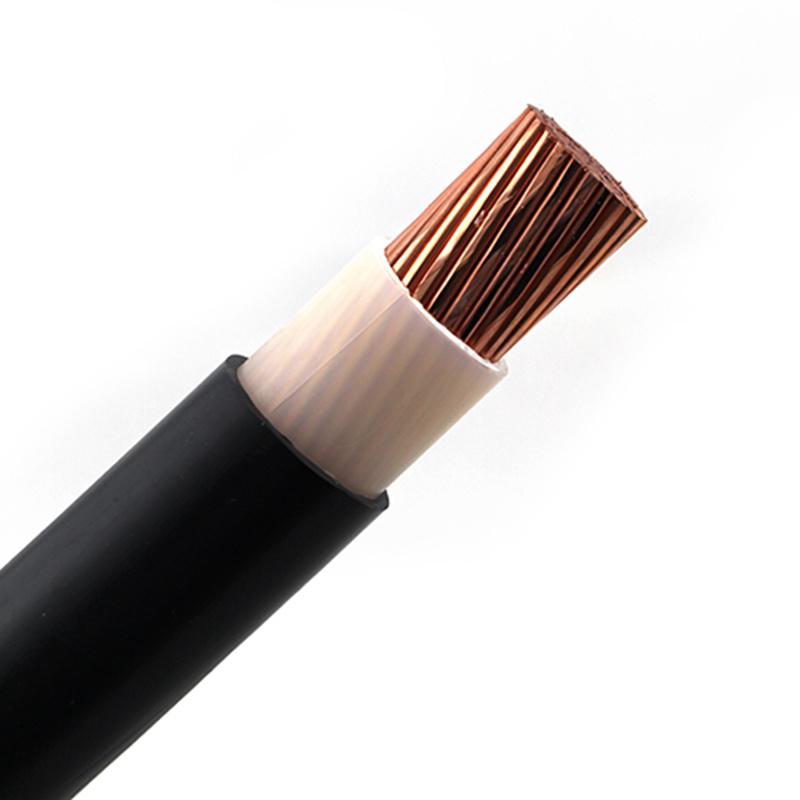

China 600V 2000V 2kv 2/0AWG 1/0AWG Cu/PE/PVC Ttu Cable

China 600V 2000V 2kv 2/0AWG 1/0AWG Cu/PE/PVC Ttu Cable image

Get Latest Price Request a quote

Product Details

Model NO.

TTU

Insulation Material

XLPE PE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Annealed Soft Copper

Certification

ISO, CCC, CE

Model

Ttu

Brand

Qifan

Standard

Icea ASTM

Staff

3048

Plant

Transport Package

Roll Coil Drum

Specification

8AWG to 1000MCM

Trademark

QIFAN

Origin

China

HS Code

8544492100

Production Capacity

500000km/Month

Product Description

TTU 600V cable CU/PE/PVC

1.CU/PE/PVC

2.standard:ASTM BS IEC

3.reliable qualtiy&fast delievery

TTU 600V Cable CU/PE/PVC

1. Applications

The copper conductors type TTU-600V are used for power and lighting circuits in industrial and commercial facilities, they are specially suitable for outdoor installations or directly buried, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, its maximum temperature of operation is 75 ºC and its voltage of service for all the applications it is 600 V.

2. Construction

The conductors type TTU-600V are stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Polyethylene (PE) thermoplastic material resistant to the moisture and the heat, over which is applied a protector coating of Chloride of Polyvinyl (PVC). They are always supplied in black color and with different packaging.

3.TTU 600V data sheet

SIZE AWG O MCM	CROSS SECTION AL mm2	STRANDING Number of wire x diameter mm.	INSULATION THICKNESS mm.	JACKET THICKNESS mm.	EXTERNAL DIAMETER mm.	TOTAL WEIGHT Kg/Km	AMPACITY for 1 conductor in free air Amp.	AMPACITY for 3 conductors in conduit Amp.
8	8,37	7 x 1,23	1,14	0,38	6,73	109,0	70	50
6	13,30	7 x 1,55	1,14	0,76	8,45	170,0	95	65
4	21,15	7 x 1,96	1,14	0,76	9,68	301,0	125	85
2	33,62	7 x 2,47	1,14	0,76	11,21	376,0	170	115
1	42,36	7 x 2,78	1,40	1,14	13,42	461,5	195	130
1/0	53,49	19 x 1,89	1,40	1,14	14,53	609,0	230	150
2/0	67,43	19 x 2,12	1,40	1,14	15,68	747,0	265	175
3/0	85,01	19 x 2,39	1,40	1,14	17,03	915,0	310	200
4/0	107,20	19 x 2,68	1,40	1,14	18,48	1132,0	360	230
250	127,00	37 x 2,09	1,65	1,65	21,23	1390,0	405	255
300	152,00	37 x 2,29	1,65	1,65	22,63	1641,0	445	285
350	177,00	37 x 2,47	1,65	1,65	23,89	1889,0	505	310
400	203,00	37 x 2,64	1,65	1,65	25,08	2137,0	545	335
500	253,00	37 x 2,95	1,65	1,65	27,25	2627,0	620	380
600	304,00	37 x 3,23	2,03	1,65	29,97	3144,0	690	420
650	329,00	37 x 3,37	2,03	1,65	30,95	3409,0	725	440
700	355,00	37 x 3,49	2,03	1,65	31,79	3593,0	755	460

We are China China 600V 2000V 2kv 2/0AWG 1/0AWG Cu/PE/PVC Ttu Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
