300/600V 2 3 4 5 6 7 8 Core 1.5mm 2.5mm 4mm 6mm 8mm 10mm 16mm 25mm H07rn-F Rubber Flexible Cable

300/600V 2 3 4 5 6 7 8 Core 1.5mm 2.5mm 4mm 6mm 8mm 10mm 16mm 25mm H07rn-F Rubber Flexible Cable image

Get Latest Price Request a quote

Product Details

Model NO.

H07RN-F

Current

DC & AC

Insulation Material

Rubber

Sheath Material

Rubber

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, CE, RoHS, VDE

Model

Brand

Qinshan

Name

Heavy Duty Rubber Cable

Market

Global

Hot Sale Size

70mm, 120mm,150mm,95mm

Other Core

1 Core, 2 Core, 3 Core, 4 Core, 5 Core

Voltage Rating

450/750V

Transport Package

Wooden Drum

Specification

1.5-400MM2

Trademark

QINSHAN

Origin

China

HS Code

8544492100

Production Capacity

6000000meters/Year

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 5.00cm

Package Gross Weight

0.500kg

Product Description

300/600V 2 3 4 5 6 7 8 Core 1.5mm 2.5mm 4mm 6mm 8mm 10mm 16mm 25mm H07RN-F Rubber Flexible Cable

Standard :IEC60245 / VED 0282

Construction :

1.Conductor: Annealed flexible copper conductor (class5)

2.Insulation:EPR Rubber(Ethylence-propylene)

3.Insulation Color: 1core :Black
2core :Blue/Brown(Flat Rubber)
3core :Blue/Brown/Yellow&Green
4core :Blue/Brown/Yellow&Green/Grey
5core :Blue/Brown/Yellow&Green/Grey/Black

4.Sheath:CR Rubber(Poly-chloroprene)
or Polychloroprene Rubber(Neoprene)

5.Sheath Color:Black or Customized

Characteristic:

1.Temperature Rating: -30ºC up to 60ºC
2.Voltage Rating:450/750V
3.Testing Voltage:2500V
4.Min inner bending radius: 7x overall diameter
5.Behaviour in fire: Flame retardant to IEC60332-1

Application:

Heavy Duty Rubber Cables H07RN-F is Used for medium and heavy mechanical loads, in dry and wet areas, also outdoor.Could be installed under or on plaster,in rocks,concrete.Suitable for fixed industrial and home installation,for operating conditions with possible fire or explosion hazard,for mobile energy users,machine tools and agricultural machines, for construction sites at medium mechanical loads,for large kettles,heating plates,hand lamps,electrical tools such as drills,circular saws and electrical tools for household use,same as for mobile engines or machines on construction sites and craftsman i.e.agricultural plants.Permitted fixed fixed laying on crane and machine elements etc.Permitted voltages up to 1000V AC at protected laying in tubes or devices, and as connecting rotor cable for engines. Also suitable for cooling installations. Resistana to oil ,ozone and UV irradiation.

Technical Parameters:

No.of cores x Nominal section area	No.of cores x Nominal section area	No.of cores x Nominal section area	No.of cores x Nominal section area	No.of cores x Nominal section area	No.of cores x Nominal section area
No.X mm²	No.X mm²	No.X mm²	No.X mm²	No.X mm²	No.X mm²
H07RN-F Heavy Duty Rubber Cable 450/750V
Single core	2 core	3 core	4 core	5 core	Control Cable
1×1.5	2×1.0	3×1.5	4×1.5	5×1.5	7×1.5
1×2.5	2×1.5	3×2.5	4×2.5	5×2.5	12×1.5
1×4	2×2.5	3×4	4×4	5×4	14×1.5
1×6	2×4	3×6	4×6	5×6	16×1.5
1×10	2×6	3×10	4×10	5×10	19×1.5
1×16	2×10	3×16	4×16	5×16	24×1.5
1×25	2×16	3×25	4×25	5×25	27×1.5
1×35	2×25	3×35	4×35	5×35	30×1.5
1×50	2×35	3×50	4×50	5×50	37×1.5
1×70	2×50	3×70	4×70	5×70	7×2.5
1×95	2×70	3×95	4×95	5×95	12×2.5
1×120	2×95	3×120	4×120	5×120	14×2.5
1×150	2×120	3×150	4×150	5×150	16×2.5
1×185	2×150	3×185	4×185	5×185	19×2.5
1×240		3×240	4×240	5×240	24×2.5
1×300		3×300	4×300	5×300	27×2.5
1×400		3×400	4×400		30×2.5
1×500					37×2.5

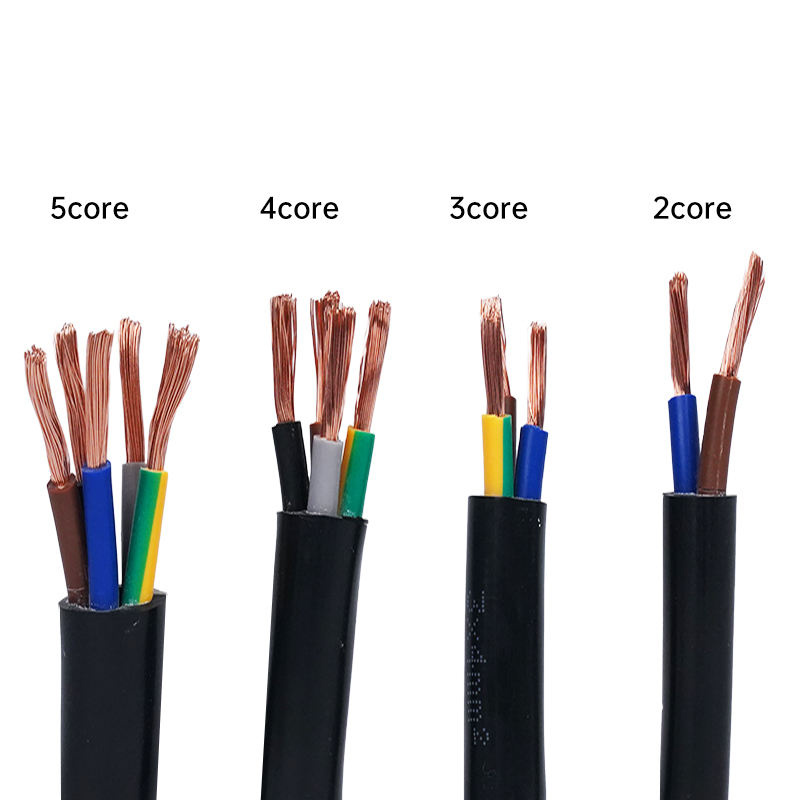

Product Show:

We are China 300/600V 2 3 4 5 6 7 8 Core 1.5mm 2.5mm 4mm 6mm 8mm 10mm 16mm 25mm H07rn-F Rubber Flexible Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
