3.6/6kv Medium Voltage Single Core 35mm2 XLPE Insulation Power Cable

3.6/6 KV Single copper aluminium Core Unarmored power cable

Application:

To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations.



Construction:

1.    Conductor – Plain annealed class 2 compacted copper

2.    Conductor screen – Semi-conductive compound

3.    Insulation – Cross linked polyethylene (XLPE)

4.    Insulation screen – Semi-conductive compound

5.    Metallic screen – Plain annealed copper tape

6.    Binder tape – Non-hygroscopic material tape

7.    Outer sheath – Polyvinyl chloride compound (PVC)

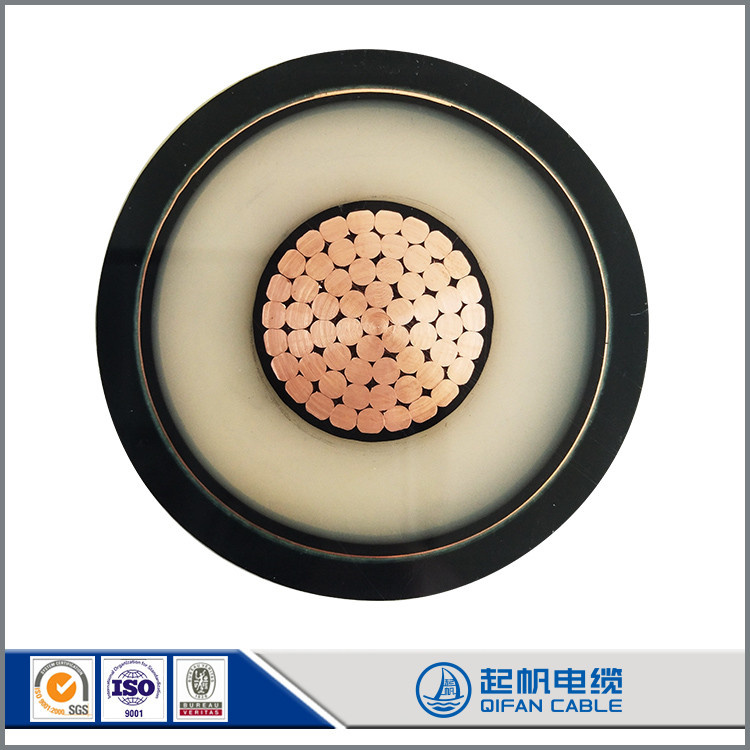

Cross Section:

1 core; 16~800mm2



Temperature characteristics:

Conductor operating temperature: -15ºC~90ºC

Min. temperatrue laying condition: 0ºC

Conductor emergency operating temperature: 105ºC

Conductor short-circuit operating temperature (5s): 250ºC



Electrical Characteristics:

Rated voltage: 3.6/6(7.2) kV

AC High voltage test: 2.5U₀ for 30min

Partial Discharge at 1.73 U₀: 5PC or better



Color:

Core identification: Nature or according to the customer’s request

Outer sheath: Black or according to customer requirements



Standard:

Cable design: IEC 60502-2

Conductor: IEC 60228

Voltage Test and Partial Discharge Test

1. Imported equipment with experienced technical team
   The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X – RAY 8000 on-line eccentricity measuring unit from Germany
2. Complete certification system
   Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3. Perfect Production system
   Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4. Perfect Sales service system
   Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
