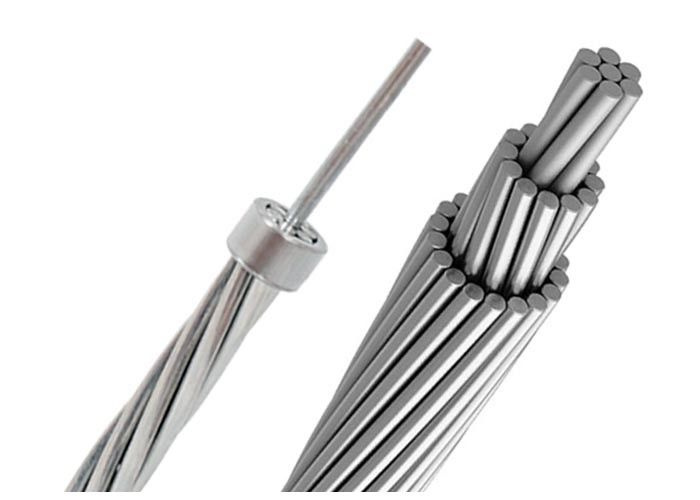

20-650mm2 45mm2 120mm2 185mm2 300mm2 230mm2 AAAC Conductor Cables with Good Service image
Get Latest Price Request a quote
You May Like
Product Details
Packaging & Delivery
Product Description
AAAC are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR.
The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR.
AAAC form part of the family of Overhead Conductors, Transmission Conductors and Power Distribution Conductors. These overhead aluminium conductors are used as power transmission and distribution lines. All aluminium conductors are made up of one or more strands of aluminium wire depending on the specific application.
| Code | Stranding&Wire Diameter mm |
Overall Diameter mm |
Sectional Area mm2 |
Approximate Weight kg/km |
| 16 | 7/1.84 | 5.52 | 18.6 | 50.8 |
| 30 | 7/2.3 | 6.90 | 29 | 79.5 |
| 45 | 7/2.91 | 8.72 | 46.5 | 127.1 |
| 120 | 19/2.79 | 14.0 | 116 | 319.3 |
| 185 | 19/3.53 | 17.6 | 186 | 511.0 |
| 230 | 19/3.95 | 19.7 | 232 | 638.7 |
| 465 | 37/4 | 28 | 465 | 1280.5 |
| 650 | 61/3.69 | 33.2 | 651 | 1795.3 |
We are China 20-650mm2 45mm2 120mm2 185mm2 300mm2 230mm2 AAAC Conductor Cables with Good Service manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
