12/20kv 12.7/22kv Three Cores Al/Cu XLPE/PVC Armoured Power Cable

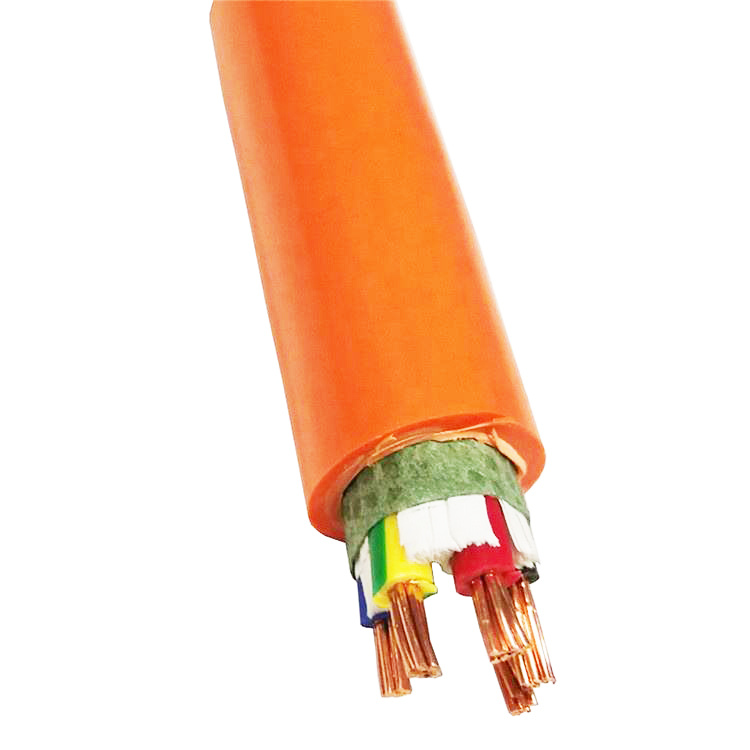

12/20kv 12.7/22kv Three Cores Al/Cu XLPE/PVC Armoured Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

Mv 12/22Kv Armoured Power Cable

Conductor Material

Copper/Aluminum

Sheath Material

PVC

Insulation Material

XLPE

Material Shape

Round Wire

Range of Application

Overhead

Certification

ISO9001, CE, SGS TUV

Brand

Ume

Third Party Inspection

Accepted

Sample

Free

Color

Customer Specified

OEM

Accepted

Transport Package

Drum

Specification

Mv 12/22Kv Armoured Power Cable

Trademark

UME

Origin

China

HS Code

8544601200

Production Capacity

500, 000km Per Month

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES – HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

1. Application
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

2. Construction

1) Conductor : Copper or Aluminum,Class 1 or Class 2,solid or stranded Circular conductors

2) Conductor screen: semi-conducting compound

3) Insulation: Cross-linked polyethylene XLPE

4) Insulation screen: semi-conducting compound

5) Metallic screen: Copper tape or/and Copper wire

6) Over sheath: Polyvinyl chloride PVC or PE

3. Standard

IEC 60228 Conductors of insulate cables

IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)

No.X Nominal Cross Section of Conductor	Nominal Diameter of Conductor	Nominal Thickness of Insulation	Nominal Thickness of Copper Tape Screen	Nominal Thickness of Inner Sheath	Nominal Thickness of Steel Tape Armouring	Nominal Thickness of PVC Sheath	Approx. Overall Diameter	Approx. Weight
								Al Conductor	Cu Conductor
No. X mm 2	mm	mm	mm	mm	mm	mm	mm	kg/m	kg/m
3 X 25
3 X 35	6.9	5.5	0.1	1.5	0.5	2.4	55.6	3.14	3.77
3 X50	8.2	5.5	0.1	1.5	0.5	2.5	58.6	3.49	4.34
3 X 70	9.7	5.5	0.1	1.5	0.5	2.6	62.1	3.93	5.16
3 X 95	11.3	5.5	0.1	1.6	0.5	2.6	65.7	4.46	6.16
3 X 120	12.8	5.5	0.1	1.7	0.5	2.7	69.4	5	7.15
3 X 150	14.2	5.5	0.1	1.7	0.5	2.8	72.6	5.49	8.19
3 X 185	15.9	5.5	0.1	1.8	0.5	3	76.9	6.16	9.53
3 X 240	18.3	5.5	0.1	1.9	0.8	3.2	83.9	7.87	12.31
3 X 300	20.4	5.5	0.1	2	0.8	3.2	88.6	8.96	14.52
3 X 400	23.2	5.5	0.1	2.1	0.8	3.5	95.4	10.35	17.43
3 X 500	26.4	5.5	0.1	2.2	0.8	3.7	103.7	12.45	20.23

MV Power Cables

MV Power Cables – Copper Conductor IEC 60502-2
XLPE Insulated Cable	Single-core	Three-core
	YJV (N2XSY)	YJV (N2XSEY)	CU/XLPE/CTS/PVC
	YJY (N2XS2Y)	YJY (N2XSE2Y)	CU/XLPE/CTS/PE
	YJSV (N2XSY)	YJSV (N2XSEY)	CU/XLPE/CWS&CTS/PVC
	YJSY (N2XS2Y)	YJSY (N2XSE2Y)	CU/XLPE/CWS&CTS/PE
	YJV62 (N2XSBY)	YJV22 (N2XSEBY)	CU/XLPE/CTS/STA/PVC
	YJV63 (N2XSB2Y)	YJV23 (N2XSEB2Y)	CU/XLPE/CTS/STA/PE
	YJV72 (N2XSRY)	YJV32 (N2XSERY)	CU/XLPE/CTS/SWA/PVC
	YJV73 (N2XSR2Y)	YJV33 (N2XSER2Y)	CU/XLPE/CTS/SWA/PE
MV Power Cables – Aluminum Conductor IEC 60502-2
XLPE Insulated Cable	Single-core	Three-core
	YJLV (NA2XSY)	YJLV (NA2XSEY)	AL/XLPE/CTS/PVC
	YJLY (NA2XS2Y)	YJLY (NA2XSE2Y)	AL/XLPE/CTS/PE
	YJLSV (NA2XSY)	YJLSV (NA2XSEY)	AL/XLPE/CWS&CTS/PVC
	YJLSY (NA2XS2Y)	YJLSY (NA2XSE2Y)	AL/XLPE/CWS&CTS/PE
	YJLV62 (NA2XSBY)	YJLV22 (NA2XSEBY)	AL/XLPE/CTS/STA/PVC
	YJLV63 (NA2XSB2Y)	YJLV23 (NA2XSEB2Y)	AL/XLPE/CTS/STA/PE
	YJLV72 (NA2XSRY)	YJLV32 (NA2XSERY)	AL/XLPE/CTS/SWA/PVC
	YJLV73 (NA2XSR2Y)	YJLV33 (NA2XSER2Y)	AL/XLPE/CTS/SWA/PE
